PTZ211
AVer | Professional Full HD PTZ Camera
1/2.8” Exmor CMOS
1080p 60fps output res.
12X optical zoom
80.6° view
0.3m min. distance

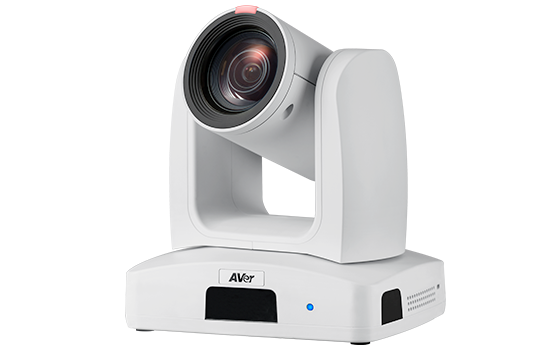

AVer’s PTZ211 is an advanced PTZ camera that gives you complete control over your streaming content. Enjoy professional-grade streaming with full HD 1080p outputs at 60 fps, a 12X optical zoom, and the cutting-edge SmartShoot feature. Upgrade your livestream performances and dazzle your audience with the PTZ211 .
PRODUCT SPECIFICATION
Camera | |
Image Sensor |
1/2.8” 1080p 60fps Exmor CMOS |
Effective picture elements |
Approx. 2.1 Megapixels |
Output Resolutions |
1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50 |
Minimum Illumination |
0.4 lux |
S/N Ratio |
> 50dB |
Gain |
Auto / Manual |
TV Line |
800 (center/wide), 700 (corner/wide) |
Shutter Speed |
1/1s to 1/32,000s |
Exposure Control |
Auto, Manual, Priority AE( Shutter, IRIS), BLC |
White balance |
Auto / Indoor / Outdoor / One-push / Manual (2500 - 10000) |
Optical Zoom |
12X |
Digital Zoom |
12X |
Viewing Angles |
DFOV : 80.6° (Wide) to 7.7° (Tele), HFOV : 72.8° (Wide) to 6.7° (Tele), VFOV : 44.1° (Wide) to 3.8° (Tele) |
Focal Length |
f = 3.9mm (Wide) ~ 46.8mm (Tele) |
Aperture (Iris) |
F = 1.6 (Wide) ~ 2.8 (Tele) |
Minimum Working Distance |
0.3m (Wide), 1.5m (Tele) |
Pan/Tilt Angles |
Pan : +-170°, Tilt : +90°/-30° |
Pan/Tilt Speed (Manual) |
Pan : 0.1 ~ 100° /sec, Tilt : 0.1 ~ 100° /sec |
Preset Speed |
Pan : 200° /sec, Tilt : 200° /sec |
Preset Positions |
10 (IR), 255 (RS232) |
Camera Control - Interface |
RS232 (DIN8) / RS422 (RJ45) |
Camera Control - Protocols |
VISCA (RS232/RS422/IP), CGI (IP) |
Image Processing |
Noise Reduction (2/3D), Filp, Mirror |
Power Frequency |
Auto / 50Hz / 60Hz |
Audio | |
Codec |
AAC-LC (48/44.1/32/24K), G.711/PCM (16K/8K) |
Channel |
2ch (stereo) |
Sample Rate |
48 / 44.1 / 32 / 24 / 16 / 8Khz |
Interface | |
Video Output |
3G-SDI, HDMI, IP, USB |
Audio Input |
MIC / Line in |
Audio Output |
3G-SDI, HDMI, IP, USB |
Genaral | |
Power Requirement |
AC100V-AC240V to DC12V/5A |
PoE |
POE+ (IEEE 802.3at), Class 4 |
Dimensions |
L = 180mm, W = 145mm, H = 183.5mm |
Weight |
1.741kg |
Application |
Indoor |
Security |
Kensington slot |
Remote Control |
Infrared |
Operating Condition |
Temperature : 0°C ~ +40°C ; Humidity : 20% ~ 80% |
Storage Conditions |
Temperature : -20°C ~ +60°C ; Humidity : 20% ~ 95% |
IP Streaming | |
IP Streaming Resolution |
1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50 |
Network Video Compress Format |
H.264 (High Profile), MJPEG |
Maximum Frame Rate |
H.264:60fps (1920x1080), MJPEG:30fps (1920x1080) |
Bit-rate Control Mode |
VBR / CBR (selectable) |
Bit-Rate Range Setting |
512Kbps ~ 32Mbps |
Network Interface |
10 / 100 / 1000Base-T |
Multi-stream Capability |
2 |
Network Protocols |
IPv4, TCP, UDP, ARP, IMCP, IGMP, HTTP, DHCP, RTP / RTCP, RTSP, RTMP, VISCA over IP |
USB | |
USB Connector |
Micro-USB 2.0 |
USB Video Formats |
YUV, MJPEG, H.264 |
Maximum Video Resolution |
Up to 1080p |
USB Video Class |
UVC1.1 |
USB Audio Class |
UAC1.0 |
Web UI | |
Live Video Preview |
Yes |
Camera PTZ Control |
Pan / Tilt / Zoom / Focus / Preset Control |
Camera/Image Adjustment |
Exposure / WhiteBalance / Picture |
Network Configuration |
DHCP / IP Address / Gateway / Subnet Mask / DNS |
Other | |
Camera |
3+2 Year |
Accessories |
1 Year |
Accessory |
Remote control, 12V/5A power adapter |
