AVER
PTZ330N

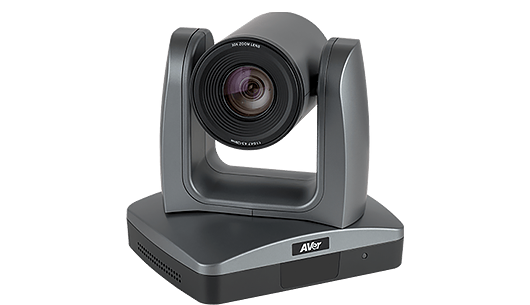

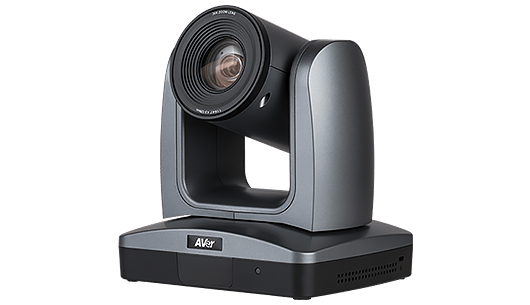

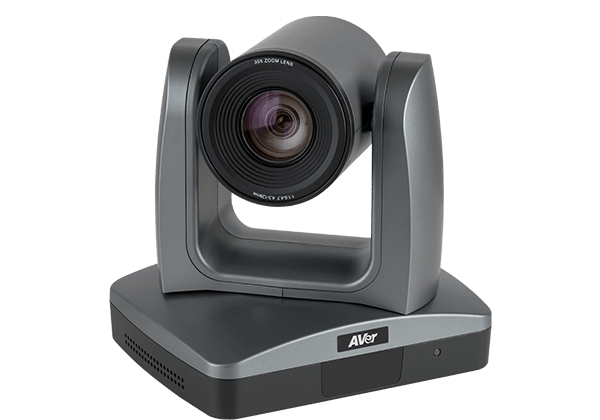

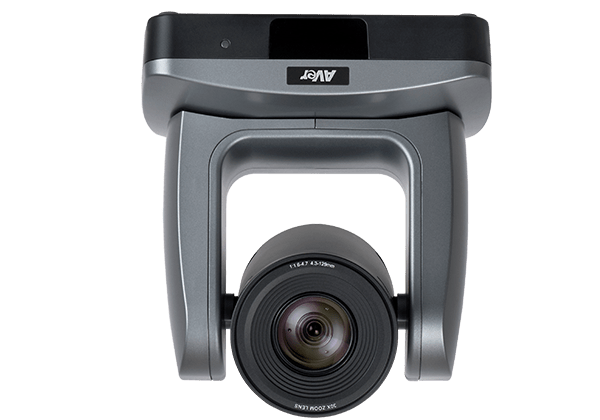

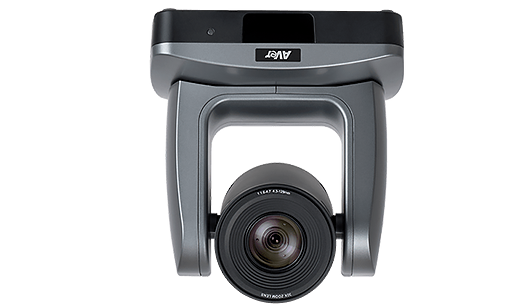

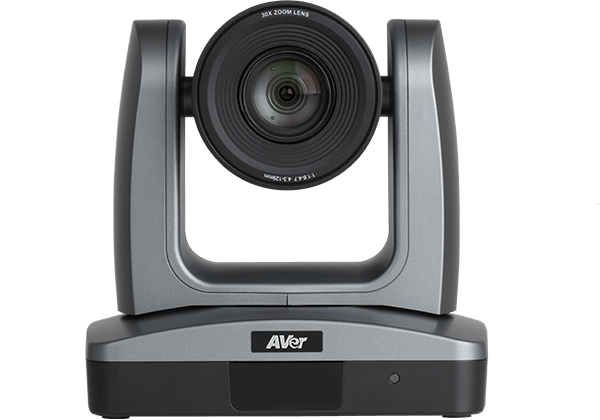

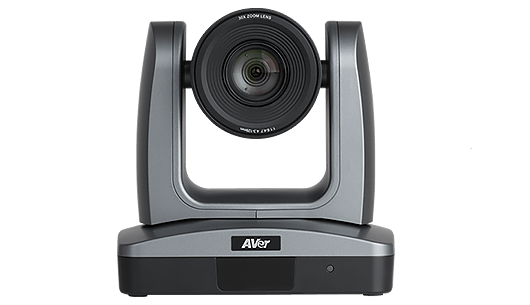

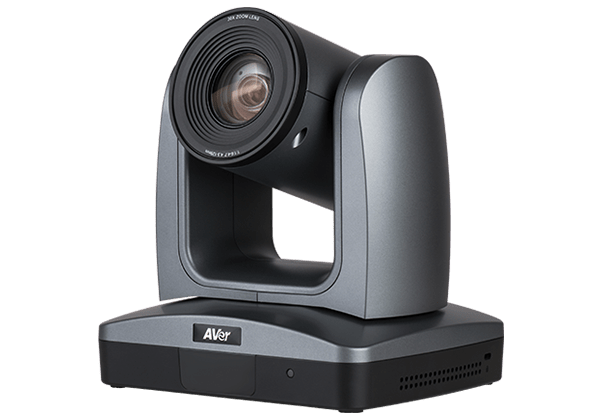

Aver PTZ330N - NDI ® HX CMOS Sensor PTZ Camera
- 1/2.8" Exmor CMOS
- 1080p@60 output resolution

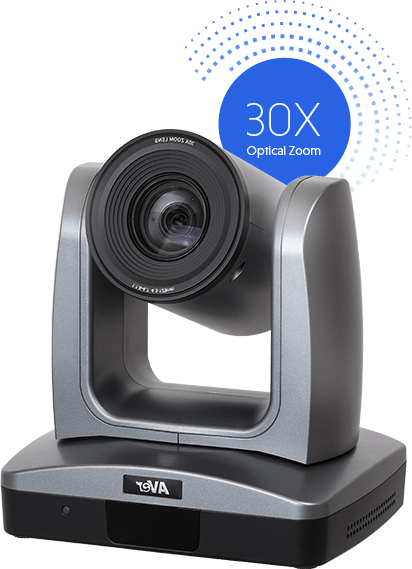

- 30X optical zoom
- 67° horizontal view

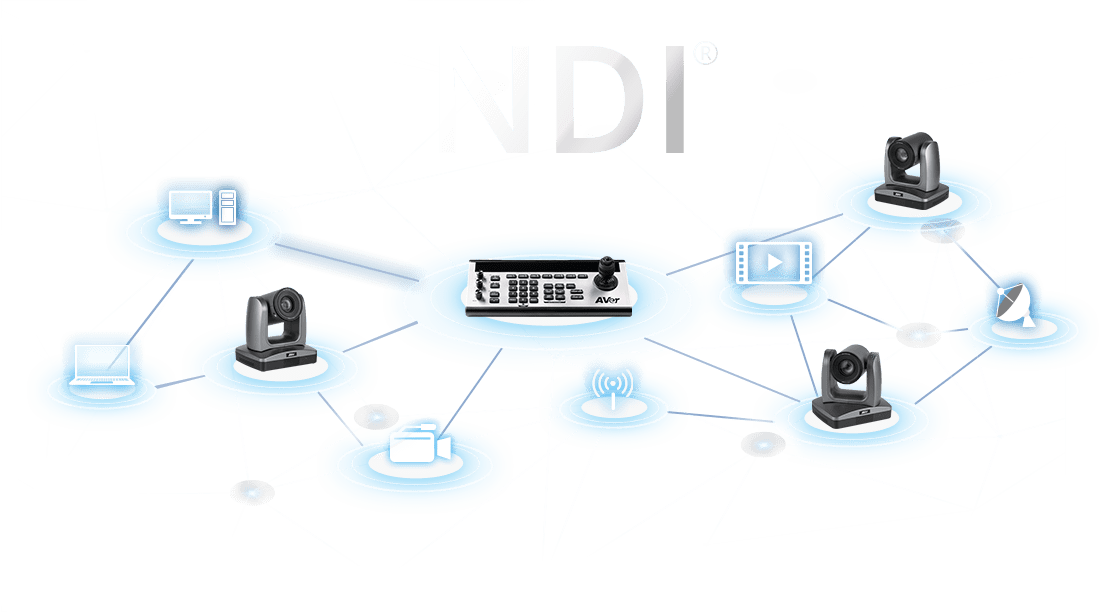

Equipped with NDI®|HX capability, the PTZ330N provides flexibility and extensive applications through a single IP cable, simplifying live-production workflows by transmitting various video and audio signals efficiently and rapidly. The PTZ330N presents every angle to make content richer and more impressive for a wide range of uses, including studio productions, live events, worship services, auditorium lectures, sports and gaming competitions, online and distance learning classes, multinational conferences, personnel training sessions, and more. Enjoy efficient and simple setup, and create comprehensive NDI-based productions.
Specs
Image Sensor
1/2.8" 1080p 60fps Exmor CMOS
Effective Picture Elements
Approx. 2.1 megapixels
Output Resolution
Auto, 1080p@60, 1080p@59.94, 1080p@50, 1080i@60, 1080i@59.94, 1080i@50, 1080p@30, 1080p@29.97, 1080p@25, 720p@60, 720p@59.94, 720p@50
Minimum Illumination
0.3 lux (IRE50, F1.6, 30fps)
S/N Ratio
> 50dB
Gain
Auto / Manual
TV Line
800 (Center/Wide), 600 (Corner/Wide)
Shutter Speed
1/1s – 1/32,000s
Exposure Control
Auto, Manual, Priority AE (Shutter, IRIS), BLC
White Balance
Auto / Indoor / Outdoor / One-push / Manual (2500 - 10000)
Optical Zoom
30X
Digital Zoom
12X
Horizontal Viewing Angle
67° (Wide) – 2.3° (Tele)
Focal Length
f = 4.3 mm (Wide) – 129 mm (Tele)
Aperture (Iris)
F = 1.6 (Wide) – 4.7 (Tele)
Minimum Working Distance
0.01 m (Wide), 1.2 m (Tele)
Pan/Tilt Angle
Pan: +- 170° ; Tilt: +90° / -30°
Pan/Tilt Speed (Manual)
Pan: 0.1 – 100° /sec, Tilt: 0.1 – 100° /sec
Preset Speed
Pan: 200° /sec, Tilt: 200° /sec
Preset Positions
10 (IR), 255 (RS-232)
Camera Control - Interface
RS-232 (DIN9) / RS-422 (RJ45)
Camera Control - Protocols
VISCA (RS-232/RS-422/IP), CGI (IP)
Image Processing
Noise Reduction (2/3D), Flip, Mirror
Power Frequency
Auto / 50Hz / 60Hz
Audio Channel
2ch (Stereo)
Audio Codec
AAC-LC (48/44.1/32/24K), G.711/PCM
Audio Sample Rate
48/44.1/32/24/16/8Khz
Video Output
3G-SDI, HDMI, IP, USB
Audio Output
3G-SDI, HDMI, IP, USB
Audio Input
MIC / Line in
Power Requirement
AC100V-AC240V to DC12V/5A
PoE
PoE+ (IEEE 802.3at), Class 4
Operating Condition
Temperature: 0°C to +40°C ; Humidity: 20% to 80%
Storage Conditions
Temperature: -20°C to +60°C ; Humidity: 20% to 95%
Dimensions
L=180 mm, W= 145 mm, H= 183.5 mm
Weight
1.62 kg
Application
Indoor
Security
Kensington slot
Remote Control
Infrared
Accessories
Remote control, 12V/5A power adapter
IP Streaming Resolution
1920x1080, 1280x720, 960x540, 640x480
Network Video Compress Format
H.264 (High Profile), MJPEG
Maximum Frame Rate
H.264: 60fps (1920x1080), MJPEG: 30fps (1920x1080)
Bit-rate Control Mode
VBR / CBR (selectable)
Range of Bit-rate setting
512Kbps – 32Mbps
Network Interface
10/100/1000Base-T
Multi-stream Capability
2
Network Protocol
IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP/RTCP, RTSP, VISCA over IP
NDI®|HX Capability
Yes
Connector
Micro-USB 2.0
Video Format
YUV, MJPEG, H.264
Maximum Video Resolution
Up to 1080p
USB Video Class
UVC1.1
USB Audio Class
UAC1.0
Live Video Preview
Yes
Camera PTZ Control
Pan / Tilt / Zoom / Focus / Preset Control
Camera / Image Adjustment
Exposure / White Balance / Picture
Network Configuration
DHCP, IP Address, Gateway, Subnet Mask, DNS
Warranty
Camera: 3 Years, Accessories: 1 Year
