PC68

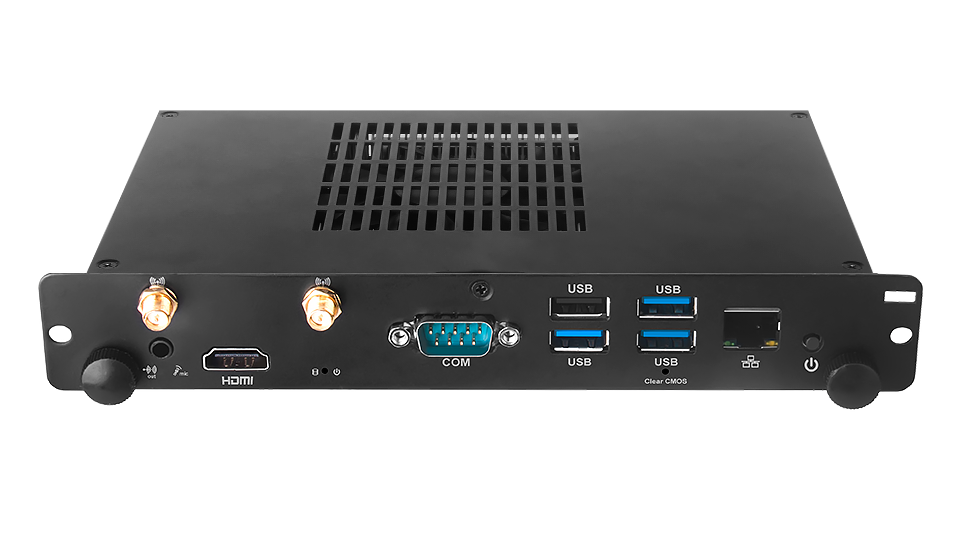

GIADA | Giada PC68 - Intel i3 OPS PC

i3 iÅŸlemci

IntelÂ® H310C/Q370/B360

32GB and altÄ± RAM support

SSD support

4xUSB 1xEth.1xRS232

PRODUCT SPECIFICATION

Audio	1 x 2-in-1 Headset (MIC-IN & AUDIO-OUT)
Auto Power On	Power Activated Automatically Start
BIOS	AMI Source Code
Certification	CE, FCC Class B, CCC
Chipset	IntelÂ® H310C/Q370/B360
Color	Black
Construction	Metal
CPU	IntelÂ® LGA1151 Socket 8th Gen. Processor
Dimensions (W Ã— D Ã— H)	200mm x 119mm x 30mm(7.87"x4.96"x1.18")
DP(80Pin JAE OPS)	1 x DP (Max.4096 x 2304@60Hz)
HDMI	1 x HDMI (Max.4096 x 2304 @24Hz)
HDMI (80Pin JAE OPS)	1 x HDMI (Max.4096 x 2304@60Hz(H310C);Max.4096 x 2304@24Hz(Q370/B360))
Input Voltage	19V/3.42A
Linux	Supported
M.2 1#	1 x M.2 (2230 ) for WiFi/BT
M.2 2#	1 x M.2 (2242/2280) for SSD
Max Size	32GB
Memory	Type
Network	1 x RJ45
Network	Realtek I219LM Gigabit Ethernet
Operating System	Windows 10(64-bit)
Operating Temperature	0? ~ 40? ( 32 ? ~ 104 ? ) at 0.7m/s Air Flow
Power Type	DC-IN
Relative Humidity	95%@40? (non-condensing)
Serial Port	1 x RS232
Socket	2 x SO-DIMM
USB	3 x USB3.0, 1 x USB2.0
Wake On Lan	Yes
WatchDog Timer	0~255 Second Time Out Support
