Lavalier Microphone

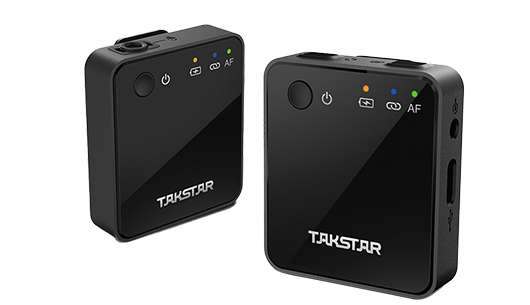

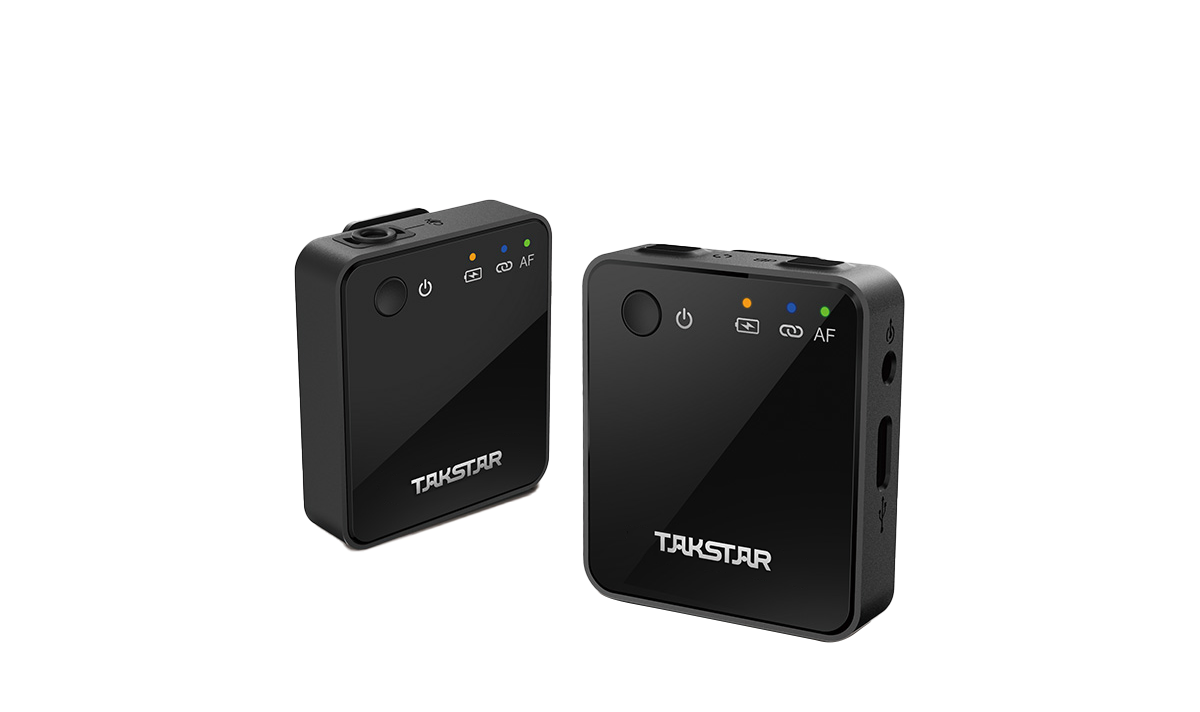

IQ | Wireless Lavalier Microphone
2.4G transmission band
Noise reduction
One-key pairing
50m range
5h battery time
PRODUCT SPECIFICATION
Transmission Frequency Band |
2400MHz-2483.5MHz |
Audio Frequency Response |
100Hz-16KHz±3dB |
Dynamic Range |
87dB (circuit performance) |
S/N Ratio |
85dB (circuit performance) |
Peak Input SPL |
97dB SPL (built-in mic) |
Pairing Method |
automatic |
Effective Working Range |
20m (with obstacles); 50m (open area) |
Dimensions |
50 x 44.5 x 15mm |
Net Weight |
~30g |
Output Interface |
ø 3.5mm TRS |
Charging Interface |
USB 5V |
Battery Type |
lithium-polymer battery |
Receiver Transmission Type |
frequency hopping / digital FSK |
Receiving Sensitivity |
-86dBm |
Receiver Battery Life |
~8hrs |
Transmitter Modulation Type |
frequency hopping / digital FSK |
Transmit Power |
10dBm |
Transmitter Mic Polar Pattern |
omnidirectional |
Transmitter Battery Life |
~5hrs |
