LC100

Lumens | 2-Channel HD Media Processor

2-channel AV source

Full HD image

Simultaneous recording and streaming

HDMI SDI RTSP USB input

Built-in 2TB HDD storage

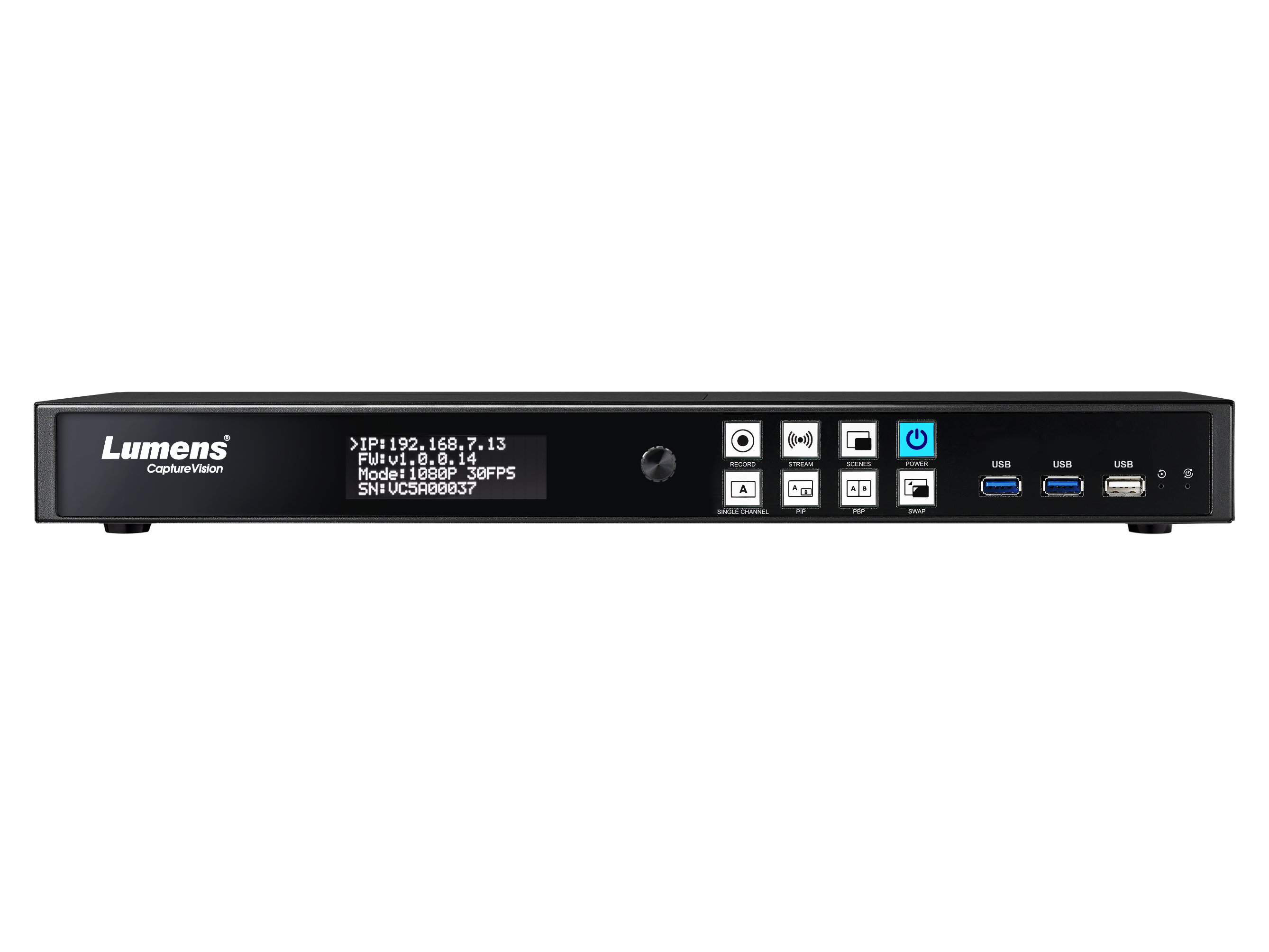

Lumens CaptureVision System LC100 is an all-in-one 2-channel media processor that enables you to record, mix and stream live. AV inputs include HDMI, SDI, USB, Ethernet and XLR audio for professional audio. Preset scenes and the intuitive GUI simplify live production, and the deployment tool software centralizes system management and administration. It is applicable for lecture capture in education, streaming worship services, sharing corporate training, and live event delivery.

PRODUCT SPECIFICATION

Video Input
Number / Signal	2 x HDMI; 2 x 3G-SDI
Connection	Female HDMI Type-A / 3G-SDI
Resolution Range	HDMI Input 1: 720p~2160p 60fps; Others: 720p~1080p 60fps
IP Source / USB Camera	Lumens IP PTZ / Box Camera; RTSP Source (H.264 1080p 60/30fps); USB Camera (MJPEG 1080p 30fps)
Video Processing
Video Compression	H.264 / AVC 4:2:0 8bit color; Encoding Profile: High, Main, Baseline
Bitrate	200 kbps to 10 Mbps
Video Output
Number / Signal	3 x H.264 / AVC Digital Video over Ethernet; 2 x HDMI Digital Video; 1 x HDMI Pass-through (Up to 4K)
Scaled Resolution	1080p
Frame Rate	30 / 60 fps
Recording and Storage
Internal Storage	2TB HDD
External Storage	4 x USB 3.0 Port
File Type	H.264 and AAC in an MP4 container, JPEG
Resolution	360p / 720p / 1080p
Frame Rate	Max. 1080p 60fps
Audio Input
Number / Signal	1 x Line In (Stereo Unbalanced Audio, 3.5mm Phone Jack); 2 x Combo (XLR / TRS, Balanced Audio, Line in / Mic in, support 48V Phantom Power); IP Audio Source (RTSP, 16K / 44.1K / 48K); Support USB Audio (UAC)
Audio Processing
Compression	AAC-LC
Audio Output
Number / Signal	1 x Stereo, Unbalanced 3.5mm Phone Jack; 2 x Stereo, Digital De-embedded Audio from HDMI
Communication
USB	1 x USB 2.0 Type A; 4 x USB 3.0 Type A; Support USB Storage, USB Camera, USB Mic, USB Mouse, Keyboard, HID Touch Display
Serial Control	RS-232 / RS-485 Port
Ethernet
Ethernet Host Port	1 x Female RJ-45, 10/100/1000 Base-T High / Full Duplex
Streaming Protocol	Pull: RTSP; Push: RTMP / RTMPS / MPEG-TS / SRT; TCP / UDP / HTTP; DHCP Client
Functions
Support IP Sources	Lumens IP Camera / RTSP
Scenes Switch	Yes, preset for layout, background, and overlay
Layout Switch	Yes (Single, PIP, and PBP)
Background Switch	Yes
Overlay	Yes, PNG overlay or system time overlay
File Backup	FTP / SFTP / NAS (CIFS/SMB, NFS) / WebDAV / Copy to USB Flash Drive
Content Management Systems	Panopto / OpenCast / Kaltura
General
Power Supply	DC In, 12V / 3A
Power Consumption	30W
Dimensions (W x H x D)	Standard 1u rack 17" x 1.9" x 8.5" (432 x 49.4 x 218 mm)
Weight	5.3 lbs (2.4 kg)
