VC-TR60A

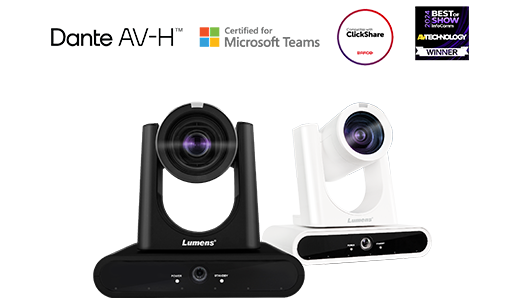

Lumens | Auto-Tracking Pro AV Camera
1/2.8″ 8.51M
2160p output resolution
12X optical zoom
81° horizontal image
VC-TR60A is a multi-talented AI-powered PTZ camera. Advanced features include speaker tracking, motion tracking, auto-framing, dual IP stream output and picture-in-picture output over HDMI and USB. Its 4K sensor and a 12x zoom provides excellent video quality output simultaneously over IP, HDMI & USB. The PTZ performs superbly in low light and delivers impressive auto-focusing and auto-exposure performance.
PRODUCT SPECIFICATION
PTZ Camera | |
Sensor |
1/2.8" 8.51M |
Video Format |
2160p: 60/50/30/25 |
Video Output (HD) Interface |
HDMI / Ethernet / USB |
Optical Zoom |
12x |
Digital Zoom |
8x |
Horizontal Viewing Angle |
81° |
Vertical Viewing Angle |
50.5° |
Diagonal Viewing Angle |
88.9° |
Aperture |
F1.8 ~ F3.6 |
Focal Length |
3.4 ~ 43.3 mm |
Shutter Speed |
1/25 ~ 1/10,000 sec |
Minimum Object Distance |
Tele:1.5m / Wide:1m |
Video S/N Ratio |
> 50dB |
Minimum Illumination |
0.5Lux (F1.8, AGC ON) |
Focus System |
Auto / Manual |
Gain Control |
Auto / Manual |
White Balance |
Auto / Manual |
Exposure Control |
Auto / Manual |
WDR |
Yes |
3D NR |
Yes |
Image Flip |
Yes |
PIP |
Yes |
Auto Tracking |
Yes |
Speaker Tracking |
Yes |
Auto Framing |
Yes |
Panoramic Camera | |
Sensor |
1/2.8" 8.51M |
Video Format |
2160p 30 / 25; 1080p 60 / 50 / 30 / 25 |
Horizontal Viewing Angle |
110° |
Vertical Viewing Angle |
78° |
Aperture |
F2.0 |
Focal Length |
f=1.89mm |
Pan & Tilt | |
Panning Angle |
+170° ~ -170° |
Panning Speed |
0.1°~100°/sec |
Tilting Angle |
+90° ~ -30° |
Tilting Speed |
0.1°/s ~ 60°/sec |
Preset Positions |
256 |
Output | |
HDMI |
PTZ: 2160p 60; Panoramic: 2160p 30 |
IP Stream |
PTZ: 2160p 30 / 720p 30 |
IP Compression |
H.264 |
USB Output |
2160p 30 |
USB Compression |
H.264 / MJPEG / NV12 |
Network | |
IP Protocol |
HTTP / RTSP / RTMP / RTMPS / SRT |
PoE |
PoE+ (IEEE802.3at) |
Audio | |
Audio Input |
Line In |
Ref Audio Input |
USB / Line In |
Audio Output |
Ethernet / USB / HDMI |
Audio Compression Format |
AAC / PCM |
Camera Control | |
Interface |
RS-232 / RS-422 / Ethernet / USB |
Protocol |
VISCA / ONVIF |
UVC |
Yes |
UAC |
Yes |
General | |
DC In |
12V +/- 20% |
Power Consumption |
PoE: 15W; DC In: 14W |
Body Color |
Black / White |
Weight |
1.5 kg |
Dimension (WxHxD) |
190 x 185 x 144 mm |
