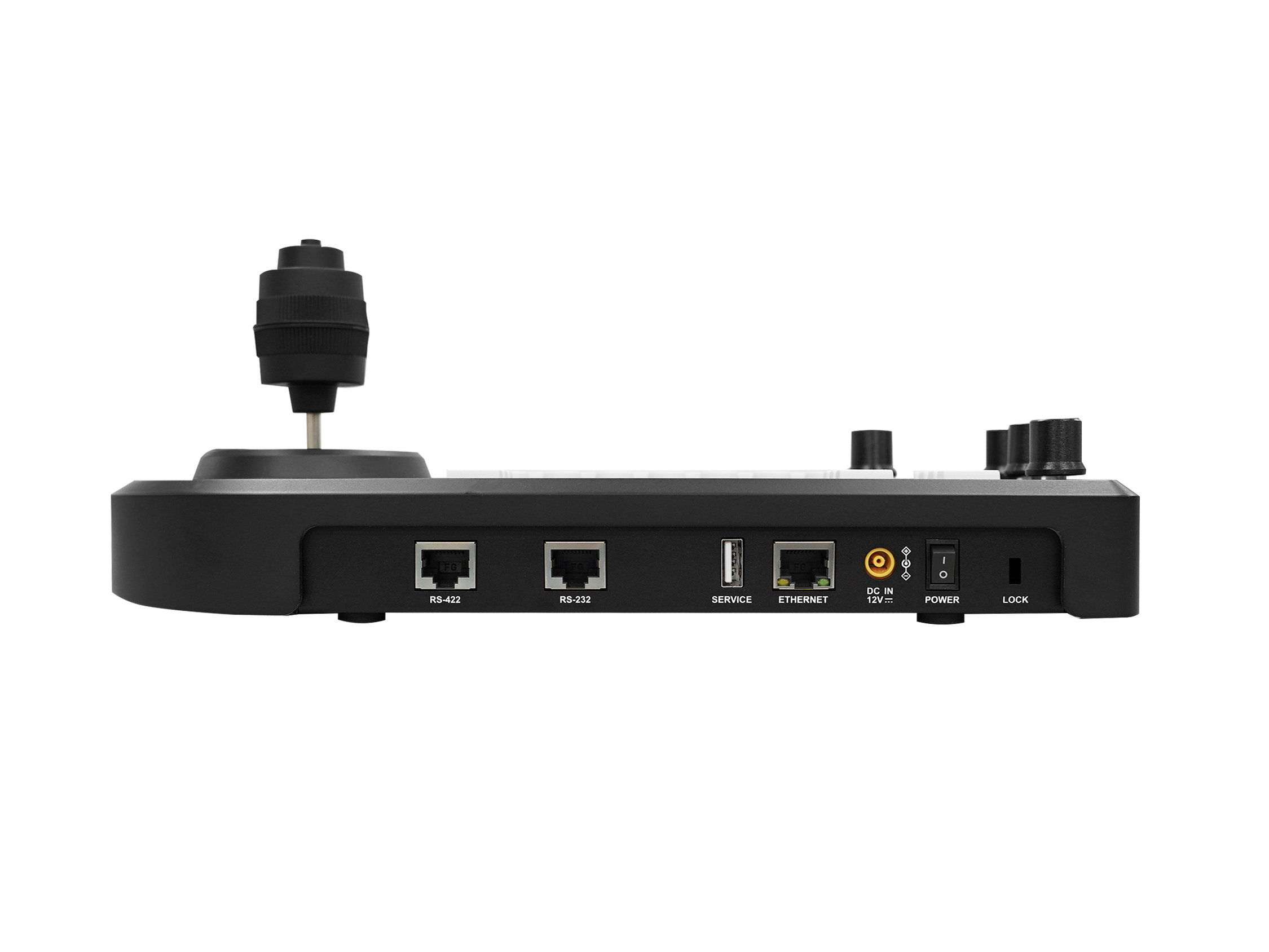

VS-KB21

Lumens | IP Camera Controller

255 camera control

LCD dispay

RS-232/422 and ethernet communication

VISCA & VISCA Over IPsupport

1 joystick

VS-KB21 is a fully-featured IP controller suitable for use with box and PTZ cameras. Its built-in display allows the user to preview the IP stream of each connected camera. This makes it easier and quicker to frame each shot and to set up presets.

PRODUCT SPECIFICATION

Comm. Interface	RS-232 / RS-422 / IP
Display	3" LCD
Joystick	4-axis (Pan / Tilt / Zoom)
Speed Control	x1 (1 Knob)
Zoom Control	x1 (Zoom Seesaw Lever)
Gain Control	R/B Gain
Focus Control	Auto / Manual
Assign Button	x2
Keypad with backlight	Yes
Stream Preview	RTSP
Control Protocol	VISCA / VISCA Over IP
Baud Rate	2400 / 4800 / 9600 / 38400 / 115200 bps
Camera Address	1~255
Preset	255
Power	DC12V / PoE
Power Consumption	PoE : 5W DC In : 5W
Dimension (WxHxD)	11.89â€³ x 5.63â€³ x 4.41â€³ (302 mm x 143mm x 112mm)
Weight	2.8 lbs (1.3 kg)
