NUREVA

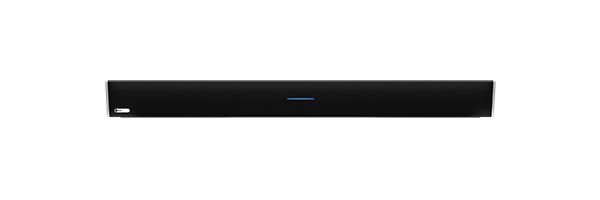

HDL300
Meeting Room Audio Solution
- Microphone Mist technology
- Built-in sound masking
- 2 x 20W speaker
- Connect module

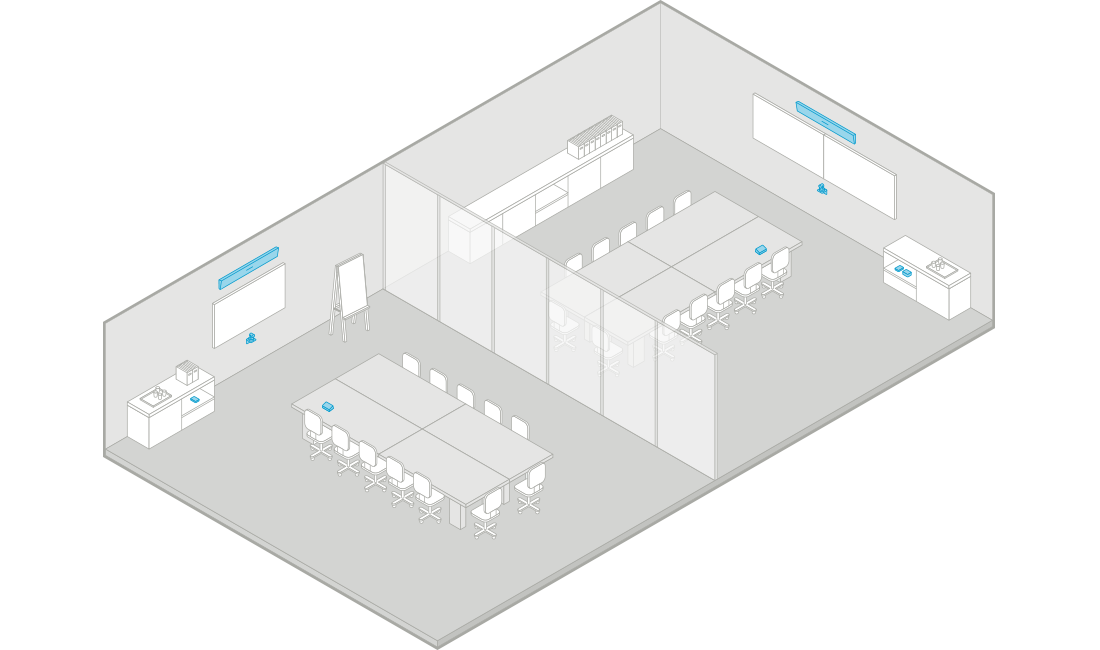

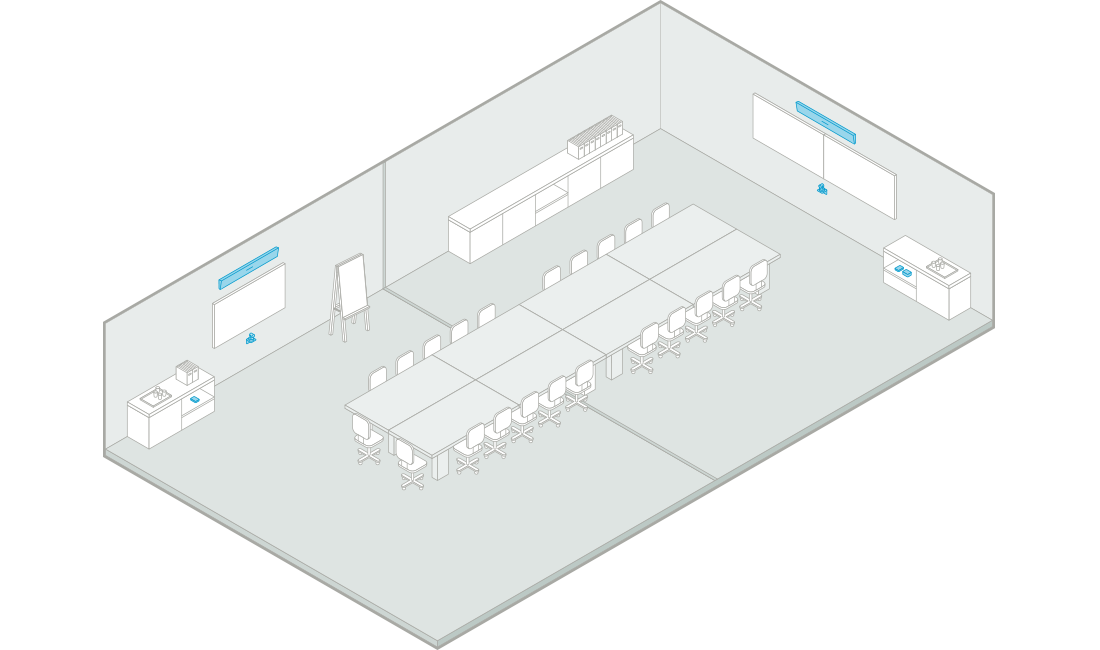

The HDL300 offers true full-room microphone pickup that lets you hear voices clearly no matter where people are sitting, looking, or moving — making it an affordable yet effective option for meeting rooms and classrooms up to 25' x 25' (7.6 x 7.6 m).

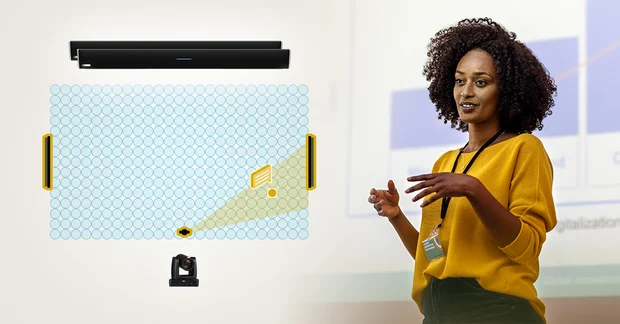

Like all Nureva systems, the HDL300 works with patented Microphone Mist™ technology that fills a space with thousands of virtual microphones. Only one HDL300 provides true full-room coverage. Compare that to traditional systems that use multiple components and can still leave dead zones where people can’t be heard. Continuous automatic calibration means your sound is always optimized, even if you change the room setup — and there’s no technician required.
Specs
Technology features
Powerful onboard system processors
Continuous autocalibration
Position-based gain control
Acoustic echo cancellation
Built-in sound masking
Ethernet cables to microphone and speaker bar
Primary audio source for video playback
Integrated, multicolor status LED
Continuous autocalibration
Position-based gain control
Acoustic echo cancellation
Built-in sound masking
Ethernet cables to microphone and speaker bar
Primary audio source for video playback
Integrated, multicolor status LED
Microphones
12 low-noise omnidirectional MEMS
Frequency response at 94 dB SPL 100 Hz to 7 kHz
Total harmonic distortion (THD) 0.25% (typical)
Frequency response at 94 dB SPL 100 Hz to 7 kHz
Total harmonic distortion (THD) 0.25% (typical)
Speakers
2 x 20 W 4" aluminum cone (2 in each microphone and speaker bar)
Acoustic output (hardware capable) 91 dB SPL @ 1 m
Total harmonic distortion (THD) 0.25% typical
Acoustic output (hardware capable) 91 dB SPL @ 1 m
Total harmonic distortion (THD) 0.25% typical

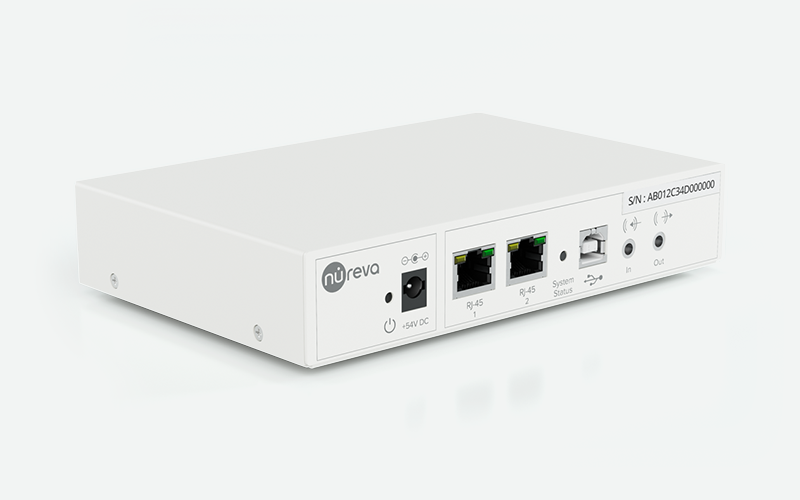

Connect module
USB 2.0 interface to computer, type B
Auxiliary out — 3.5 mm single-ended stereo jack
Auxiliary in — 3.5 mm single-ended stereo jack
2 connections to microphone and speaker bars RJ45
Input jack for power supply
Auxiliary out — 3.5 mm single-ended stereo jack
Auxiliary in — 3.5 mm single-ended stereo jack
2 connections to microphone and speaker bars RJ45
Input jack for power supply
Interoperability
Plug and play compatibility with UC&C platforms including Microsoft® Teams, Zoom, Google Meet™, GoTo Meeting, Cisco Webex®, BlueJeans, Lifesize®, RingCentral Meetings™ and more
Easy integration with third-party solutions such as Barco ClickShare, lecture capture systems and headset microphones (for Voice Amplification Mode)
Easy integration with third-party solutions such as Barco ClickShare, lecture capture systems and headset microphones (for Voice Amplification Mode)
System requirements
Windows® 10 and 11, macOS® 10 and 11 (Big Sur and Catalina)
Power
Power rating: universal switching 100–240 V AC, 50–60 Hz
Power consumption: standby <2.5 W operational <25 W
Power consumption: standby <2.5 W operational <25 W
Operating temperature
0° C to 40° C (32° F to 104° F)
Storage temperature
-20° C to 70° C (-4° F to 158° F)
Humidity
5–90% (noncondensing)
Manageability
Automatic firmware updates
Remote management features available through cloud-based Nureva Console
Remote management features available through cloud-based Nureva Console
Certifications and Compatibility
Electromagnetic: FCC Part 15, Class A; ICES-003, Class A; CISPR 32 (EN 55032), Class A; CISPR 35 (EN 55035); CISPR 24 (EN 55024)
Safety: UL 62368; CAN/CSA-C22.2 NO.62368; IEC/EN 62368; AS/NZS 62368; UL 60950; CAN/CSA-C22.2 NO.60950; IEC/EN 60950; AS/NZS 60950
Compliance: RoHS, REACH, POPs (Persistent Organic Pollutants), WEEE, California Proposition 65, EPA (TSCA — Toxic Substances Control Act) Restrictions
