NDP100

Q-NEX | Desktop Digital Podium

23.8" display

1920x1080 resolution

Active pen

10 touch point

178Â° viewing angle

Q-NEX Digital Podium NDP100 smartens up lecturing environments such as classroom and meeting with its powerful all-in-one integration and network-based remote control and management. The interactive digital podium allows for seamless device control and operation during lectures. Its integration with in-room multimedia devices creates a user-friendly experience, empowering lecturers to better engage and interact with students. Whatâ€™s more, the automated touchscreen digital podium features an all-in-one design and universal AV and control ports. This enables remote control of integrated devices through network-based access. Features like AV broadcasting, live streaming and automation tasks can be easily managed through app or web-based control. Also, the digital podium offers customizable device integration to suit the specific needs of your organization. Create a genuine smart and hassle-free lecturing environment that enhances the learning experience for all.

Components

Interactive pen display

Touch panel

Gooseneck microphone

Wireless charging

Abundant interfaces

Networked Media Processor

Document camera(optional)

Built-in PC

* A Lite Media Server is required for pushing AV broadcast and live streaming to the digital podium.

Device control at one stop

Converges multiple multimedia devices for simplified and seamless control at one stop. Making all the device control near at hand.

Effortless AV contents switch

3X3 AV matrix switch and seamless touch-following to the big screen. Better engage and ignite students learning enthusiasm with continuous flow of enriched audiovisual resources with timely annotation.

Unified Connectivity

The Q-NEX Digital Podium NDP100 offers abundant interfaces, including AV and control ports. Notably, NDP100 features a full-functioned Type-C port, delivering charge, network connectivity, and smooth transmission of audiovisual data to connected laptops, ensuring effortless connectivity for presenters, and allowing seamless integration regardless of the type of computer they bring.

Stay connected with whole campus

Reliable and automatic playing of the campus-wide AV broadcasting and live streaming for school announcement, important notification, lectures, special events and so on. Always stay connected with the whole campus. (Media server required)

Easy device integration and upgrade

Easy integration with various types of multimedia devices, allowing continuous classroom hardware upgrade or expansions.

Hybrid learning across campus and beyond

Convenient live streaming of lectures across the classrooms throughout the campus and to those online remote learningstudents. Maximize the teaching resources, teaching efficiency, and education equality.

Maximized efficiency

Support automation schedule for the device to power on or off at predefined time. Saving energy and reducing workload.

Application Diagram

AV Connections

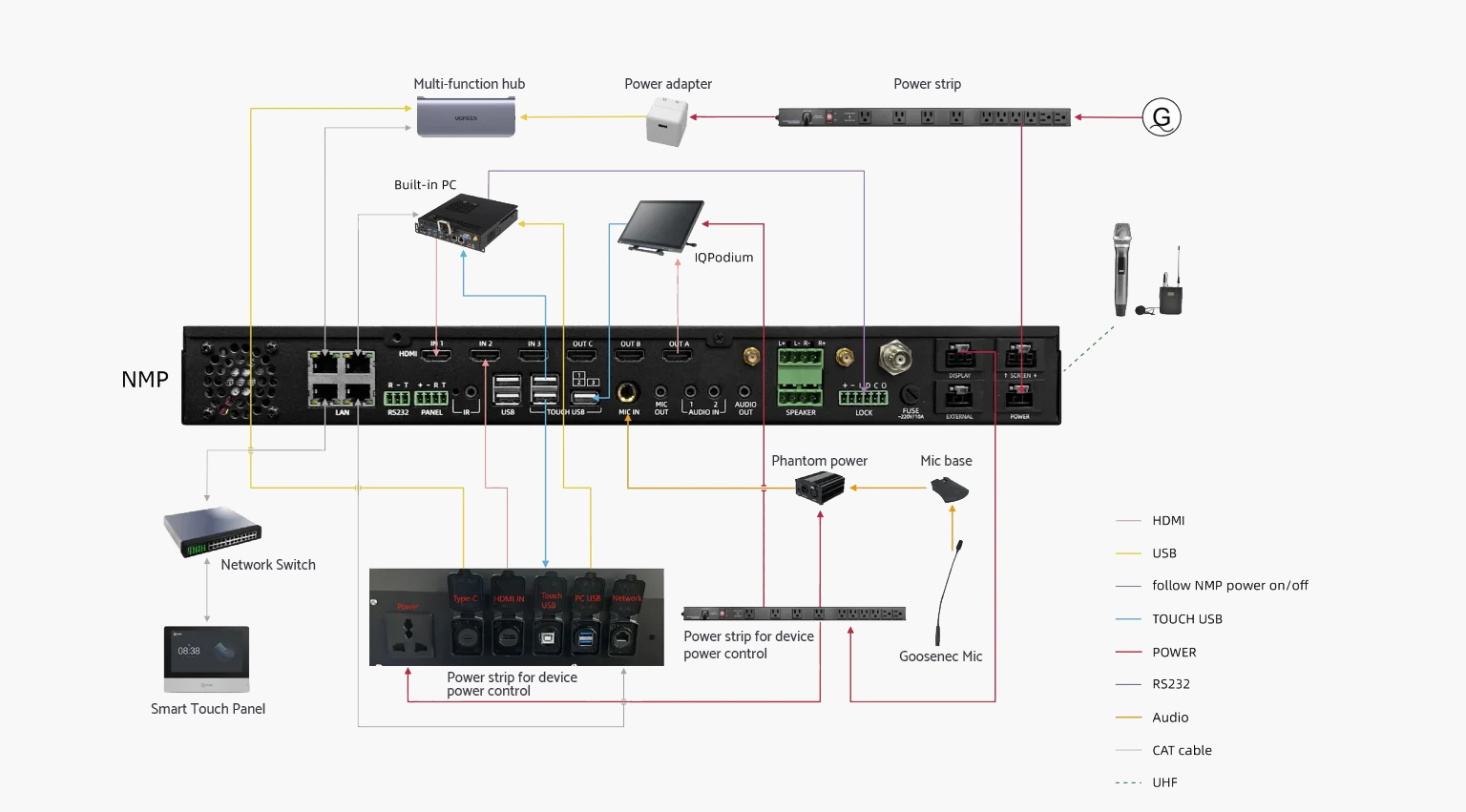

Inner Connections

Applications

Auditorium

Q-NEX digital podium enables seamless AV content sharing and one-touch device control for effective audience engagement in auditoriums.

Seminar Halls

Q-NEX creates highly interactive and collaborative meeting experiences in seminar halls with integrated AV device control and content sharing from one spot.

Classroom

Q-NEX digital podium maximizes engagment and interaction with students through seamless display of AV contents and device control while enabling a hybrid classroom through its connection with lecture capture system.

Why Should You Use Digital Podium?

Q-NEX digital podium offers smart and highly automated multimedia environment. It allows instructor or presenters to better engage and interact with audiences or participants with seamless presentation of AV contents through convenient one-touch control,igniting their passion for creativity and innovation. Q-NEX digital podium stands out in its application for classroom, conference room, auditorium, seminar hall, board room, training rooms, etc., enabling convenient content sharing and device control.

Enhance Your Presentations with the smart digital Podium

The smart digital podium offers unified control with one-touch operation, allowing presenters to easily manage the podium and other multimedia devices in the room. Say goodbye to multiple remotes and complex setups.

Engage Your Audience with Seamless AV Display

Create interactive presentations with the smart digital podiumâ€™s seamless display of diverse audio-visual (AV) content. From presentations to videos, interactive media and annotations, captivate your audience with a dynamic experience.

Access Teaching Resources with Cloud Connectivity

Utilize cloud connectivity to access and share teaching materials and AV content effortlessly. Stay up-to-date with the latest and most relevant resources, fostering an enriched learning environment.

Connect Campus-Wide with AV Broadcasting and Live Streaming

Broadcast your presentations campus-wide by leveraging the smart podiumâ€™s AV broadcasting and live streaming capabilities. From emergency notifications to speeches, hybrid classes, and campus events, reach the entire campus community.

Environmentally Conscious Design

The smart digital podium promotes environmental consciousness with its eco-friendly and sustainable design. Easily integrate it into existing infrastructure, minimizing the need for complete replacements or hardware upgrades.

Mobile and Remote Control of Devices

Control the smart digital podium and integrated devices from your mobile device using apps or web-based platforms. Enjoy enhanced mobility and flexibility during device management.

Simplify Event Planning with Automation

Preset the smart digital podium to automate tasks such as scheduling device power on/off and managing AV broadcasting and live streaming. Streamline your event planning and ensure a seamless presentation experience.

PRODUCT SPECIFICATION

Podium Body
Overall Dimensions (LxWxH)	820 x 611 x 1123mm
Materials	Reinforced steel plate structure with powder-coated anti-rust paint on the metal surface
Tabletop Dimenions (LxWxH)	820 x 273 x 611mm (closed) 2000 x 273 x 611mm (fully extended)
Sliding Cover Panel	Dimensions (LxWxH): 820 x 600 x 18mm Corner radius: R40 (mm) Material: Eco-friendly medium density board Weight Capacity: 30kg
Keyboard Tray	Designed for convenient placement of wireless keyboard and mouse. Dimensions (LxW): 420 x 180mm
Wireless Keyboard and Mouse Combo	Optional
Front Drawer	The front drawer is a hidden compartment that can hold standard-sized devices, such as a keyboard, mouse, and wireless microphone. Dimensions (LxWxH): 480 x 220 x 100mm
Rack/Shelf	Dimenions (LxWxH)ï¼š 500 x 490 x 590mm The rack is designed to store the following equipment: - Q-NEX NMP - Built-in PC - Switching power supply - Gooseneck microphone base - Phantom power adapter
Interactive Pen Display	PD150 Display
Groove	1 x Stylus pen holder Dimension: 390mm
Wireless Charging	1 x Wireless charging (15W)
Interface	1 x Power outlets(110-240 V ACï¼Œ3-prong) 1 x Touch USB Type B (USB 2.0 ) 1 x HDMI-IN (4K@60Hz) 1 x Type C (Charging, Internet connectivity and HDMI transmission) 2 x USB Type A (USB 3.0) 1 x LAN (10M/100M/1000M Self-adaptive RJ45) 1 x Goose-neck microphone jack
Antenna	2 x 2.4 GHz and 5 GHz dual-band Wi-Fi for the built-in PC 2 x 2.4GHz Wi-Fi for NMP to connect external CBXs 1 x UHF antenna for wireless mic receiver built-in NMP
Touch Panel	CPL10 Touch Panel
Gooseneck Microphone	QGM100 Gooseneck Microphone
Up/Down Buttons	Control the automatic up and down movement of Digital Podium`s Display. Default viewing angle is 12 degrees, with a maximum tilt of 35 degrees when raised. *With a Limit Switch combined with "up / down" buttons, to ensure the Sliding Cover Panel would not block in the way when raising the Display
Interactive Pen Display
PD150	Click for PD150 specifications
Networked Media Processor NMP 211-G-LU
Size (LxWxH)	440 x 292 x 50mm
Weight	3.9Kg
Standard 1U Rack-Mount Design	Suitable for installation in various types of cabinets
Industrial-grade embedded motherboard	High-speed 32-bit CP, Embedded operating system
LAN Switch	4 x 10M / 100M RJ45 network switch ports
Audio Matrix Module	2 x 3.5mm line in, 1 x 3.5mm line out
Microphone	1 x 6.35mm wired MIC in, 2 x UHF wireless MIC (with receiver built in NMP), 1 x 3.5mm MIC mixed out
HDMI matrix module (In x Out)	3 x 3 HDMI 2.0 Matrix Module, support 4K@60Hz, support HDCP 2.2 and HDCP 1.x
Communication interface	1 x RS232, 2 x USB, 1 x USB-DEVICE in(2 choose 1 to USB-HOST), 2 x USB-HOST Out, 1 x Phoenix 4-Pin for control panel, 1 x infrared remote control, 1 x IR learner port (for learning IR remote control code not in the code base)
Power amplifier	2 x (40W + 40W), support to connect at least 2 pairs of passive speakers
Access control	1 x electronic lock power connector (12V) 1 x electronic lock control driver output 1 x electronic lock status input 1 x electronic lock indoor switch input
Power control	1 x power supply for NMP, support wide voltageï¼ˆ110-240 V A Cï¼‰ 1 x single pole double throwï¼ˆSPDTï¼‰ switch 1 x power output for projection screen 1 x power output for display or others 1 x Power fuse
Antenna Ports	1 x antenna port for wireless microphone 2 x antenna ports for Wi-Fi module
Remote Control & Management	Centralized control and management of classroom devices such as PCs, projectors, A/C, power supplies of external devices through the Internet Remote statistics on the usage and status of classroom devices, such as: equipment usage logs, energy consumption, etc.
Push Notification	Display daily messages, important alerts and announcements delivered by IT admin or teachers in text format in the classroom displays instantly or on schedule.
Wireless RF Transceiver	â€œWi-Fi friendlyâ€ 2.4 GHz spread spectrum 2-way RF (2400 to 2483 MHz)
Wireless RF Transmitting Power	13.5dBm
Wireless Range	< 30 m, support for connectting up to 4 units of control box for extended RS232/IR/Relay control
Connection	Control Box (CBX) support RS232/IR/Relay control
Wireless MIC Receiver	Power supply: 5V/500mA Frequency bandwidth: 50MHz Frequency range: 640-690MHz Maximum channels: 200 Receiving sensitivity: <=-105dBm SNR: >= 80dB Audio output level: 350 mV Distortion (THD+N): <0.5% Latency: <3ms Operating temperature: -25CÂ°-60CÂ°
Media Server (optional)	16GB/4TB SATA*4/ DVDRW Streaming Service System
Touch Panel
CPL10	CPL10 touch panel
Wireless Microphone
WX-U32	WX-U32wireless mic.
Built-in PC
CPU	Intel Â® CoreTM i5-11320H, Processor base frequency3.2GHz, 4 cores 8 threadsï¼ŒPower consumption 45W
RAM	16GB, 2 x DDR4 slots, up to 32GB
Storage	1TB SSD
Graphics Card	CPU Integrated Graphics, HD Graphics
Network Card	1 Ã— RJ45 LAN 10/100/1000M
WiFi	IEEE 802.11 a/g/n/ac
USB	3 Ã— USB3.0, 3 Ã— USB2.0
Power Button	1 Ã— power button
OPS	1 Ã— OPS (80pin)
Audio	1 Ã— Line-Out & Mic-In
LED Light	1 Ã— Power light &1 Ã— Harddisk light
Power Input	19V
Dimension (LxWxH)	180 x 195 x 42mm
Temperature	Operating temperature: 0Â°C ~ 50Â°C, Storage temperature: -20 ~ 70Â°C
Humidity	5% ~ 90% No condensation
Document Camera E4521 (Optinal)
Resolution	8.0MP
Sensor	1/2.8" Sony CMOS
Frame Rate	30fps
Zoom	10x Optical Zoom, 10x Digital Zoom
Focus	automatic / manual
Shooting Range	A3
Device Structure	Folding, support for multi-angle shooting, the lens body rotates 90 degrees left and right
HDMI Output	4K, 1080P
VGA Output	1080P
Record Output	3840 x 2160P @20fps(Max), 1080P @30fps
USB Output	3840 x 2160 @15fps, 1080P @30fps
Image Adjustment	Brightness, sharpness, contrast, saturation
Image Effects	Freeze, Mirror, B&W/Color, Text, Image, On-Screen Contrast, Picture-in-Picture, etc.
LED Light	3-level adjustment
Interface	VGA (1 x Input & 1 x Output), HDMI (1 x Input & 1 x Output), 1 x USB, USB Mouse
TF Card Storage	Maximum support 32G
Native Annotation Function (by mouse operation)	Real-time annotation, auto focus, zoom in, zoom out, photo, video, video playback, on-screen comparison, picture-in-picture, freeze, title freeze, rotate, image, text and other functions
Button	Powerï¼ŒSwitchï¼ŒRotateï¼ŒLightï¼ŒZoom In&Outï¼ŒBrightness Up&Downï¼ŒAF
Infrared Remote Control	Yes
Microphone	Yes
Power Supply	DC 12V
Size	Folded: 373.5 x 110 x 160mm Expanded: 448 x 385 x 160mm
Weight	2.8kg
Gooseneck Microphone QGM100
Polar Pattern	Supercardioid
Frequency Response	70 ~ 20KHz
Sensitivity	-45dB (Â±2dB) (0dB=1V/1Pa,1KHz)
Output Impedance	200 ohm Balanced
Power Supply	DC3V/AC220V
Anti-Interference	Resistance to mobile phone interference and electromagnetic interference.
Weight	200g
Phantom Power	input: 100-240V AC, 50/60Hz output: 48V DC (Â±2V)
Phantom Output Current	10mA
Phantom Interface	Input Port: 1/4-inch TRS jack Output Port: XLR 3-pin jack
Dimensions (WxHxD)	96 x 45 x 127mm
Weight	~500g
Full Gigabit Switch
RJ45 Ports	8 x 10/100/1000M self adaptive Ethernet ports
Standards	IEEE802.3, IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3x
Protocol	CSMA/CD
Data Transfer Rate	2000Mbps (Full Duplex)
Network Media	Cat5e or above UTP/STP (<=100m)
Store and Forward	Supported
Switching Capacity	16Gbps
MAC Address Table Depth	4K
Power Input	External Power Adapter (Input:100~240V ACï¼Œ 50/60Hzï¼›Output: 9V DC, 0.6A)
