RB20

Rocware | Dual Lens 4K All-in-One Video Bar

Dual lens 4K camera

12X optical zoom

AI assisted shooting

Intelligent framing

Digital Microphone

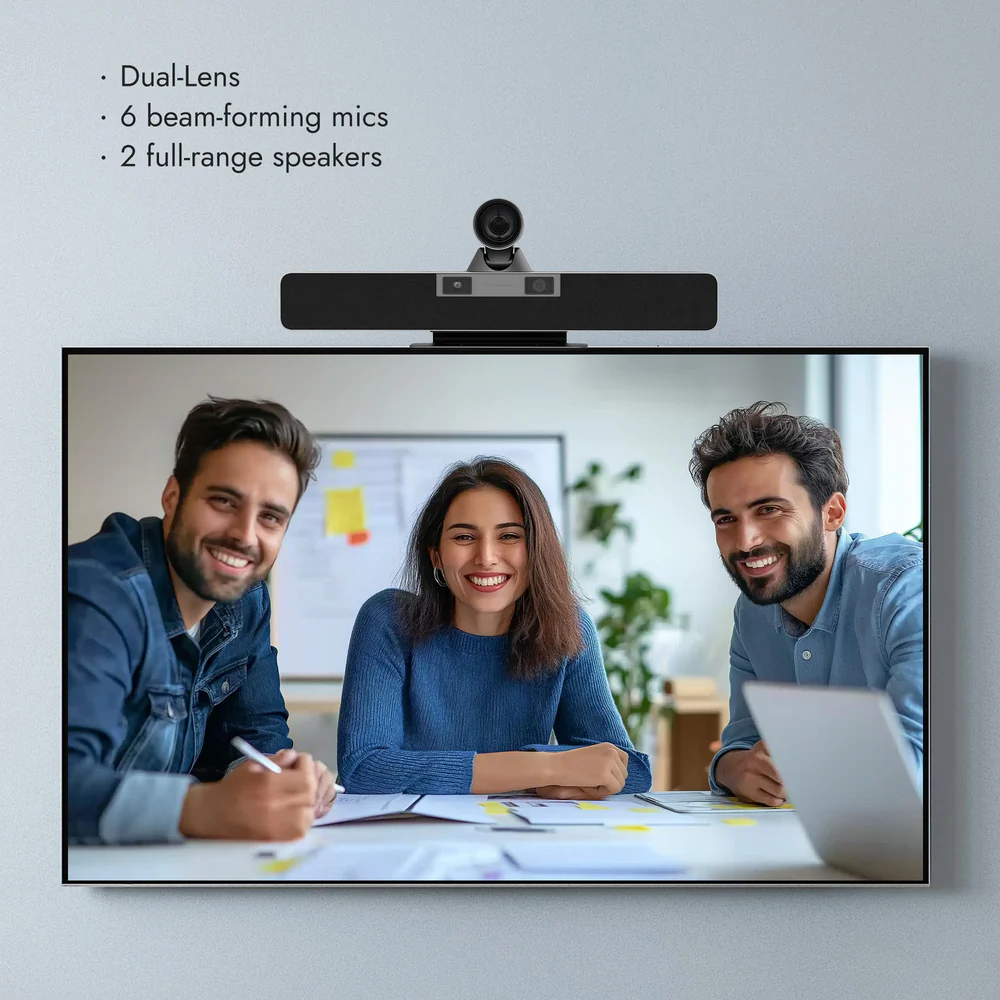

The RB20 is designed specifically for medium to large corporate meeting spaces, integrating dual-lens ultra-high-definition audio and video capabilities. It features a 4K ultra-high-definition panoramic and close-up camera system, digital microphone, and full-range speaker in a unified design, simplifying wiring and facilitating easy installation. With built-in advanced AI video processing algorithms, it automatically adjusts the camera framing based on the meeting dynamics.

Effortless Collaboration in Any Meeting Space

RB20 is built for modern medium-to-large meeting spaces where clarity, simplicity, and flexibility matter most. Its dual-lens 4K design captures both the full room and every speakerâ€™s expression with remarkable accuracy. AI-driven framing, presenter tracking, and speaker detection ensure remote participants always see the right person at the right momentâ€”without anyone touching the controls.

4K ULTRA-HD IMAGE

Every Detail Captured in True 4K

Both lenses use high-quality UHD CMOS sensors to deliver sharp, lifelike 4K@30fps images. Mechanical PTZ on the close-up lens and e-PTZ on the panoramic lens ensure smooth, stable viewsâ€”no blur, no shake, just clarity.

MECHANICAL + ELECTRONIC PTZ SYSTEM

Smooth Motion, Wider Angles

Silent mechanical PTZ and smooth e-PTZ let you capture every angleâ€”wider coverage, cleaner motion, and no distractions for the room.

DUAL-LENS INTEGRATION

Two Lenses, One Perfectly Clear View

A 120Â° panoramic lens for the room. A 12Ã— optical zoom lens for the details. Both shown at once through picture-in-picture.

BYOM MODE

Laptop in, Meeting Live

Connect a laptop via BYOM pod(Rocware BY42) to instantly access RB20â€™s camera, mic, speakers, and 4K wired sharingâ€”compatible with any platform.

PRESENTER TRACKING

Follow Every Move, Keep the Story Flowing

Move freely while staying in focus. Gesture-activated tracking follows the presenter smoothly, keeping them centered even as they walk, point, or interact with the room.

SPEAKER FRAMING

Hear a Voice, See the Moment

RB20 locates the active speaker by sound and shifts the close-up window to highlight their position, creating a face-to-face experience for remote audiences.

SMART GALLERY

Every Face Equally Seen and Shared

RB20 automatically generates multi-window close-ups of participants, making hybrid meetings feel more personal and interactive.

HI-FI STEREO SPEAKERS

Rich Audio, Real Clarity

The integrated full-range high-fidelity speakers provides natural and authentic human voices. The device ensures that remote voices are clearly transmitted to the meeting venue, facilitating more effective communication.

8-METER VOICE PICKUP

Clear Voices Captured Accross The Room

The 8-mic array uses beamforming and AI noise reduction to capture speech across the room while suppressing echo and distractions.

RB20 in Action â€“ Perfect for Medium & Large Meeting Rooms

See how the RB20 4K All-in-One Videobar brings your medium-to-large meeting rooms to life. With AI-powered panoramic and close-up cameras, built-in microphones, and full-range speakers, every participant is seen and heard clearlyâ€”no manual adjustments needed.

PRODUCT SPECIFICATION

Close-Up Camera
Signal System	4KP30,1080P30,720P30 etc.
Sensor	1/2.5 inches, CMOS, Effective Pixels: 8.29 Megapixels CMOS
Focal Length	12x Optical zoom,f=4.4~51.1mm,F1.8~2.6
Horizontal FOV	70.1Â° ~7.4Â°
Vertical FOV	40.7Â° ~4.2Â°
Pan Angle	-90Â° ~ +90Â°
Tilt Angle	1 -23Â° ~ +23Â°
Pan Speed	1.7Â° ~ 76Â° /s
Tilt Speed	0.5Â° ~ 15Â° /s
Image Flip	Support
Image Freeze	Support
Preset Position	255
Preset Accuracy	0.1Â°
PTZ	Support
AF	Support
White Balance	Auto, Indoor, Outdoor, One Push, Manual
Backlight Compensation	Support
Digital Noise Reduction	2D & 3D Digital Noise Reduction
SNR	â‰¥ 55dB
Internal Camera
Signal System	4KP30,1080P30,720P30,640*360P30 etc.
Sensor	1/2.8 inches, CMOS, Effective Pixels: 8.51 Megapixels CMOS
Lens	Focal Length,2.8mm,(HFOV)107Â°
EPTZ	Support
White Balance	Auto
Backlight Compensation	Support
Digital Noise Reduction	2D & 3D Digital Noise Reduction
SNR	â‰¥ 55dB
Audio
Speaker	2 full-range speakers, individual output power: 8W
Microphone Array	6 analog silicon microphones, beamforming microphones, pickup distance of 8 meters
Audio 3A Algorithm	Support
Sampling Rate	Mic 32K,Speaker 48K
Extended MIC	Supports DMIC interface to extend digital microphone
USB
Operating System	Supported Windows Â® 7 (only supports 1080p and below), Windows 8.1, Windows 10 or higher; MacOS â„¢ 10.10 or higher; Google â„¢ Chromebook â„¢ Version 29.0.1547.70 or higher; Linux (requires support for UVC)
Configuration Requirements	2.4 GHz Intel Â® Core 2 Duo processor or higher; 2GB memory or higher; USB 2.0 interface (4K requires USB 3.0)
Connection Type	USB 3.0, backward compatible with USB 2.0
Color System	YUY2
Compression	MJPEG
Video Communication Protocol	UVC 1.1,UAC 1.0
UVC PTZ Control	Support(ePTZ)
USB 3.0	1 Ã— USB 3.0,type-C,Support audio/video transmission and firmware upgrade
HDMI	1 Ã— HDMI
USB 2.0	1 Ã— USB2.0,type-A,Connecting a USB wired extension mic
Network Interface1	1 Ã— RJ45,Connect to the network port expansion microphone and support PoE power supply
Network Interface2	1 Ã— RJ45,10/100M adaptive Ethernet port, supporting network transmission of audio and video
Power Interface	DC 12V
Bluetooth	Bluetooth 5.0
WiFi	WiFi 5,Supports BYOM wireless transmission and BYOD wireless screen casting function (requires additional casting device)
Remote Controller	Support
Other
Safety Protection	Kingston anti-theft lock socket
Power	DC 12V
Operating Temperature	0Â° C ~ 40Â° C
Storage Temperature	-40Â° C ~ 60Â° C
Dimensions (WxDxH)	Without Stand: 600 x 127.1 x 182.1 mm With Stand: 600 x 127.1 x 217.1 mm
