RT13
Rocware | Rooms Scheduling Panel
10.1 inch IPS
1920x1200 resolution
300 cd/m2 brightness
16:10 aspect ratio
170° viewing angle

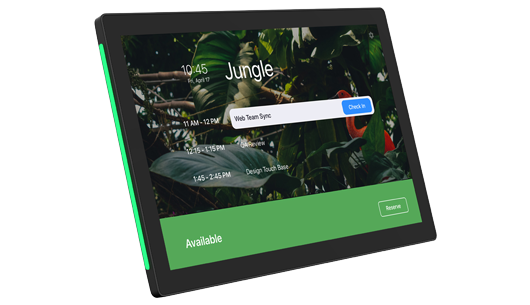

The RT13 is a schedule panel designed specifically for enterprise conference room management. It displays real-time information about room usage and meeting details through screens and LED strips, enhancing conference room utilization efficiency.
PRODUCT SPECIFICATION
Display | |
Screen |
10.1-inch, IPS |
Screen Type |
IPS Multi-touch Display |
Resolution |
1920 x 1200 |
Display Luminance |
00 cd/m2 (typ) |
Aspect Ratio |
16:10 |
Viewing Angle |
170° |
Hardware | |
CPU |
hexa-core, 4 x Cortex A73 + 2 x Coretex A53 |
Memory |
4GB |
Storage |
16GB |
Image Processor |
ARM G52 MP4 |
OS |
Android 9.0 |
Speaker |
1 × 1.2W |
Microphone |
Built-in |

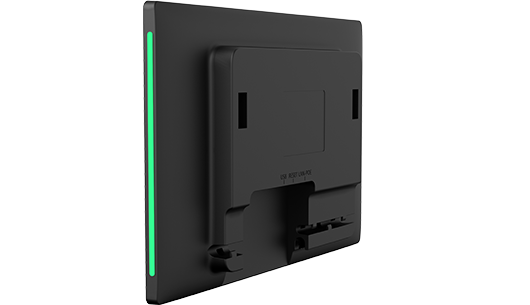

Status Light Strip |
Built-in Dual-Side Indicator Light Strip |
Software | |
Pre-installed Software (only one) |
DingTalk Intelligent Conference Room, APK (to be upgraded), Feishu Meeting Room Check-in Board APK, Zoom Rooms Controller APK |
Multimedia | |
Video Coding Format |
H.264/H.265, Supports up to 1080P60 |
Video Decoding Format |
VP9 / H.265 /H.264 /AVS2-P2, Supports up to 4Kx2K@60fps |
Picture Format |
JPEG, JPG, PNG, BMP and other common formats |
Network | |
WIFI |
IEEE802.11a/b/g/n/ac, WPA, WPA2 |
Ethernet |
10/100 MBaseT |
Bluetooth |
BT5.0 |
PoE |
Supports |
I/O | |
USB |
1 x USB2.0 Type-C (Supports power supply and data transmission) |
RJ45 |
1 x RJ45 (PoE): 10/100 Base-T |
General Specifications | |
Input Voltage |
DC 5V / PoE (802.3af) |
Input Current |
3.0A |
Operating Temperature |
0°C ~ 40°C |
Storage Temperature |
-40°C ~ 60°C |
Working Humidity |
10% ~ 80% |
Storage Humidity |
0% ~ 95% |
Power Consumption |
12W |
MTBF |
>30000Hours |
Dimensions (WxDxH) |
242× 162 × 29 mm |
Net Weight |
800g |
