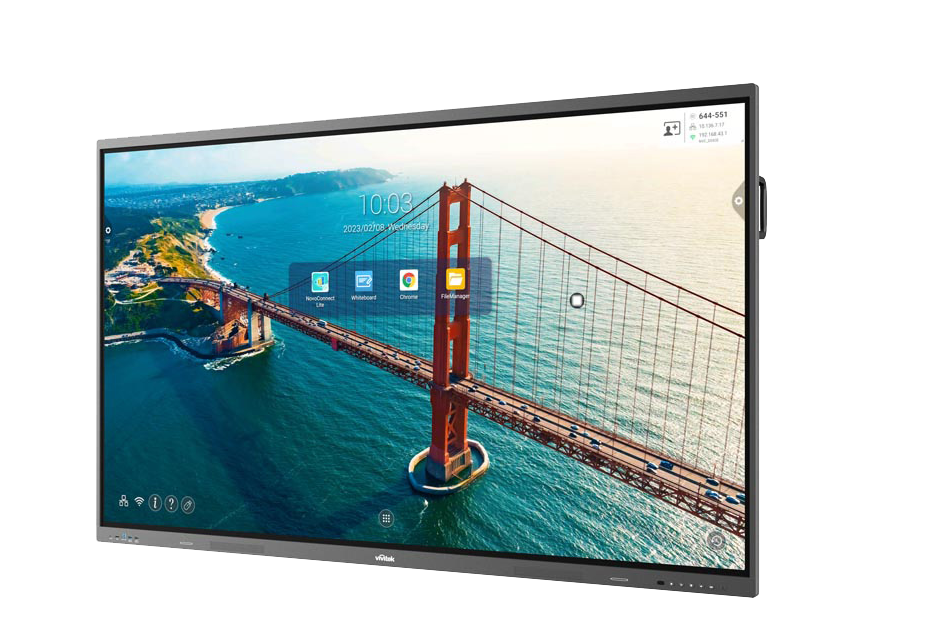

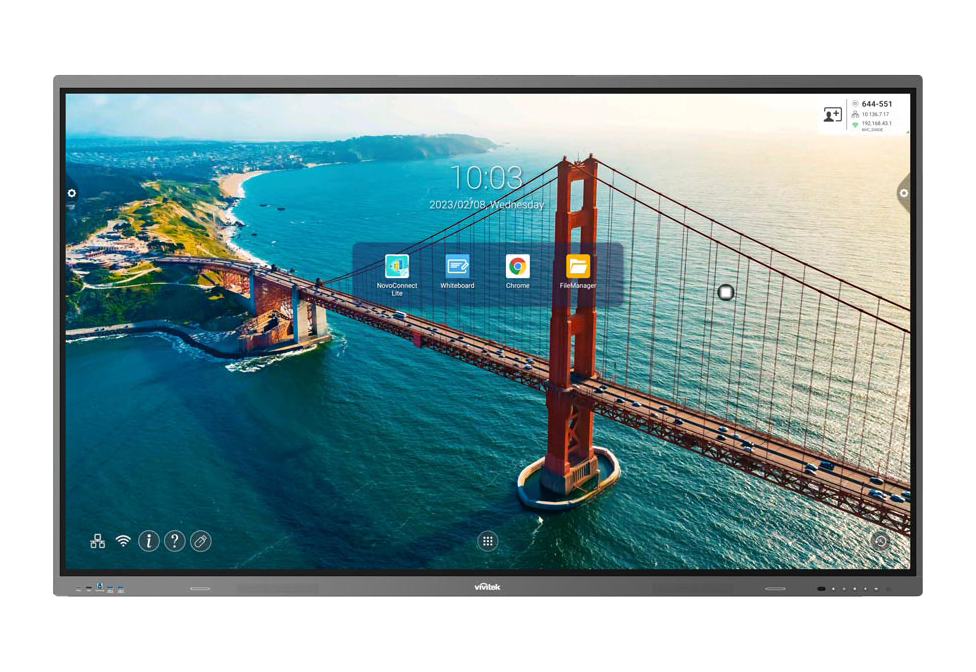

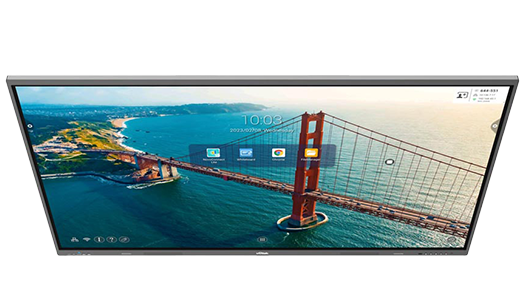

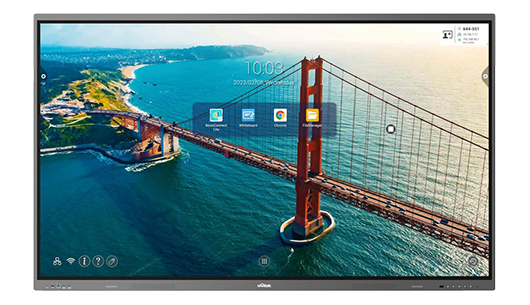

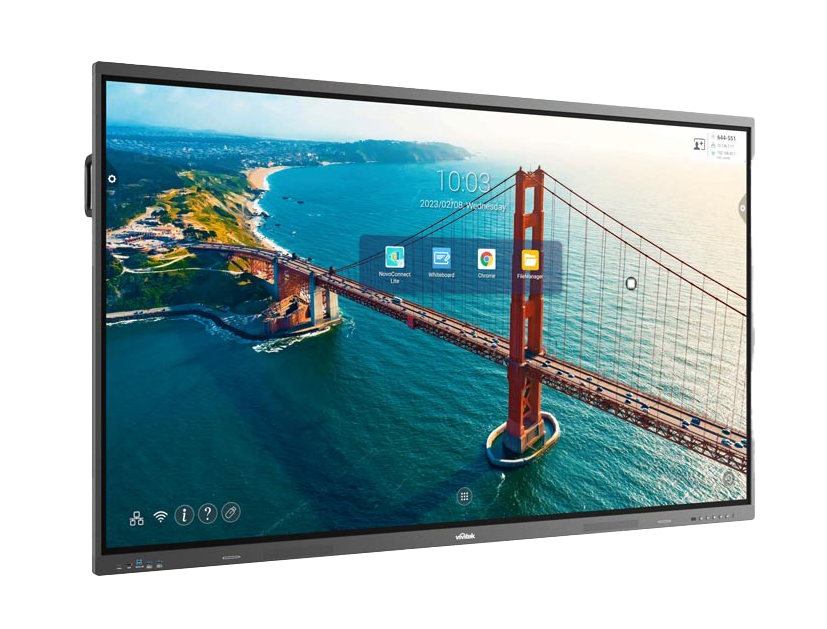

BK752i
Vivitek | 75 inch Dokunmatik Ekran
75 inch
4K Ultra-HD (3840 x 2160)
5000:1 contrast
400cd/m² brightness
Android™ v14.0

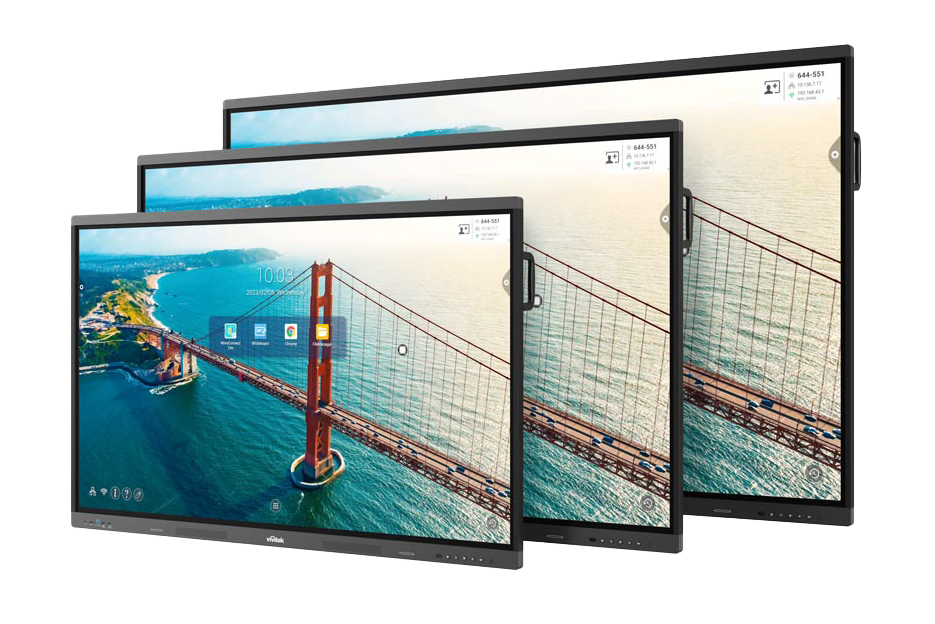

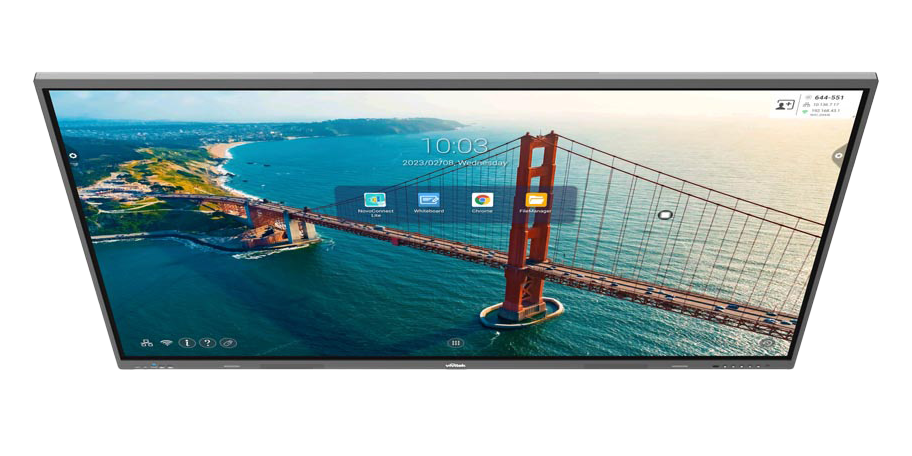

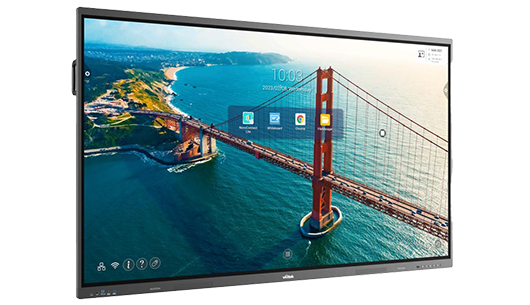

The NovoTouch BK series is a 4K-UHD collaborative touch display solution that is perfect for education, but also for business meetings, available in 65”, 75”, and 86” display sizes. NovoConnect Wireless Collaboration allows any participant to effortlessly share their device screen on the NovoTouch BK display, while the digital whiteboard function enhances the classroom experience with flawless touch annotation for truly interactive sessions. The built-in digital signage solution is easy to set up and manage via the optional NovoDS Cloud service or included NovoDS Studio software.
PRODUCT SPECIFICATION
Panel Size |
75” |
Type/Technology |
Backlit D-LED (IPS- Panel) |
Brightness |
400 cd/m2 |
Contrast Ratio |
5000:1 |
Native Resolution |
4K Ultra-HD (3840 x 2160) |
Viewing Angle (H/V) |
178° / 178° |
Aspect Ratio |
16:9 |
Refresh Rate (Hz) |
60 Hz |
Estimated Life Time |
50, 000 Hours (Min) |
Display Color (Bit) |
1.07 Billion (10-bit) Landscape |
Daily Operation (Hours/Days) |
16/7 |
Annotation Points |
10 Points |
Touch Points |
20 Points |
Passive Pen Accuracy |
±1mm (Over 90% area) |
Touch Accuracy |
±1mm (Over 90% area) |
Touch Resolution |
32, 768 x 32, 768 |
Surface Protection |
3mm Thick Toughened Glass (Level 7H on Mohs Scale of Mineral Hardness) |
Touch Tools |
Finger, Stylus, Glove, Opaque Objects |
System Version |
Android™ v13.0 |
Internal Storage |
32GB (eMMC Flash) (About 25GB User Availability) |
Display Input |
Side: HDMI v2.0 x3, Front: HDMI v2.0 x1 |
Audio Input |
Line-Out (3.5mm) x1, SPDIF-Out x1 |
Display Output |
HDMI-Out v2.0 x1 (up to 4K@60Hz) |
Audio Output |
Line-Out (3.5mm) x1, SPDIF-Out x1 |
Internet |
LAN (RJ45) x2 |
Control |
RS232-In x1 |
Wireless |
WiFi 6, IEEE802.11ax (2.4GHz/5GHz), BT 5.2 |
USB Port |
Front: USB-A 3.0 x2, USB-B x1 (For Touch) USB-C 3.1 (15W power) x1 Side: USB-A 3.0 x2, USB-B x1 (For Touch), USB-A 2.0 x1, |
Collaboration |
Screen mirroring (NovoConnect Lite version), Digital Whiteboard, WPS Office, Google Play, NT Live Receiver, Finder |
Digital Signage |
NovoDS App |
Windows (OPS) |
Intel Standard 80 Pin OPS- Optional |
Speakers |
18W x2 (Stereo) |
Device Management |
Free Software- Remote Manager / Remote Manager Cloud |
Power Supply (Internal) |
AC 100 - 240V, 50/60Hz (4.5A) |
Power Consumption |
≤420W, <0.5W (Standby) |
Dimension (LxHxD) |
1705.7 x 90.2 x 1032.3 mm |
Weight |
50.8kg |

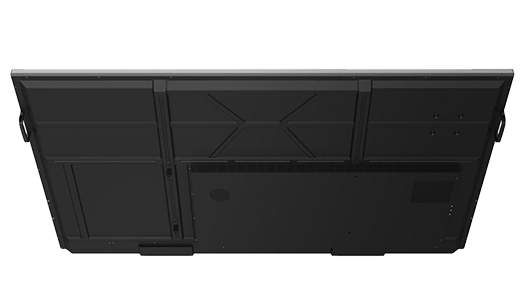

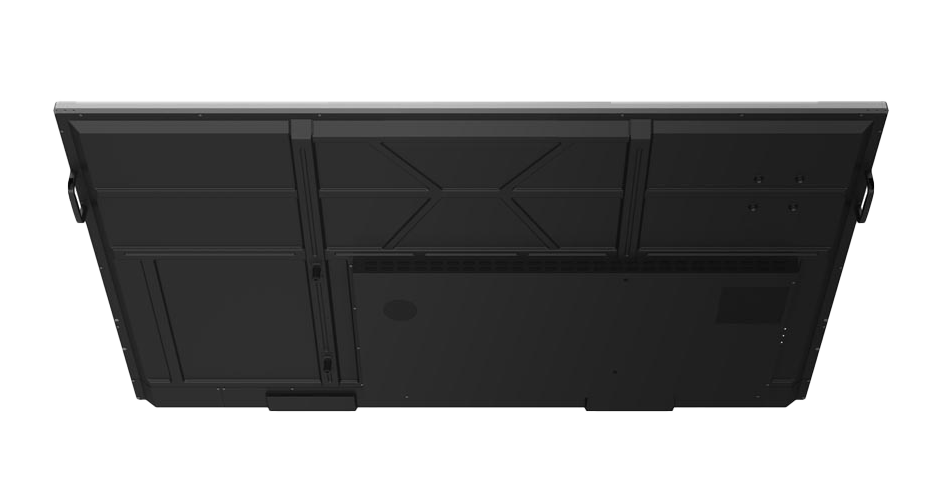

VESA Mounting (FPMPMI) |
4 - M8 × 25mm, 800 x 400mm |
Color |
Silver |
Standard Accessories |
AC Power Cord, Stylus (x2), Remote Control (W/Batteries), Wall Mount Kit, HDMI Cable (3M), Touch Cable (3M), WiFi Antenna(x3), Documentation Kit |
Optional Accessories |
LauncherPlus, Windows OPS Module – Standard 80pin |
Standard Warranty |
3-Year warranty on the panel |
Education Warranty |
5-Year warranty on the panel, where end customer is a school, university, or training centre. Education product registration required within 180 days of purchase for extended warranty to be valid. |
