10000 ANSI Lumen
3840 x 2160
20000h lazer
10000:1 contrast
Single chip DLP®

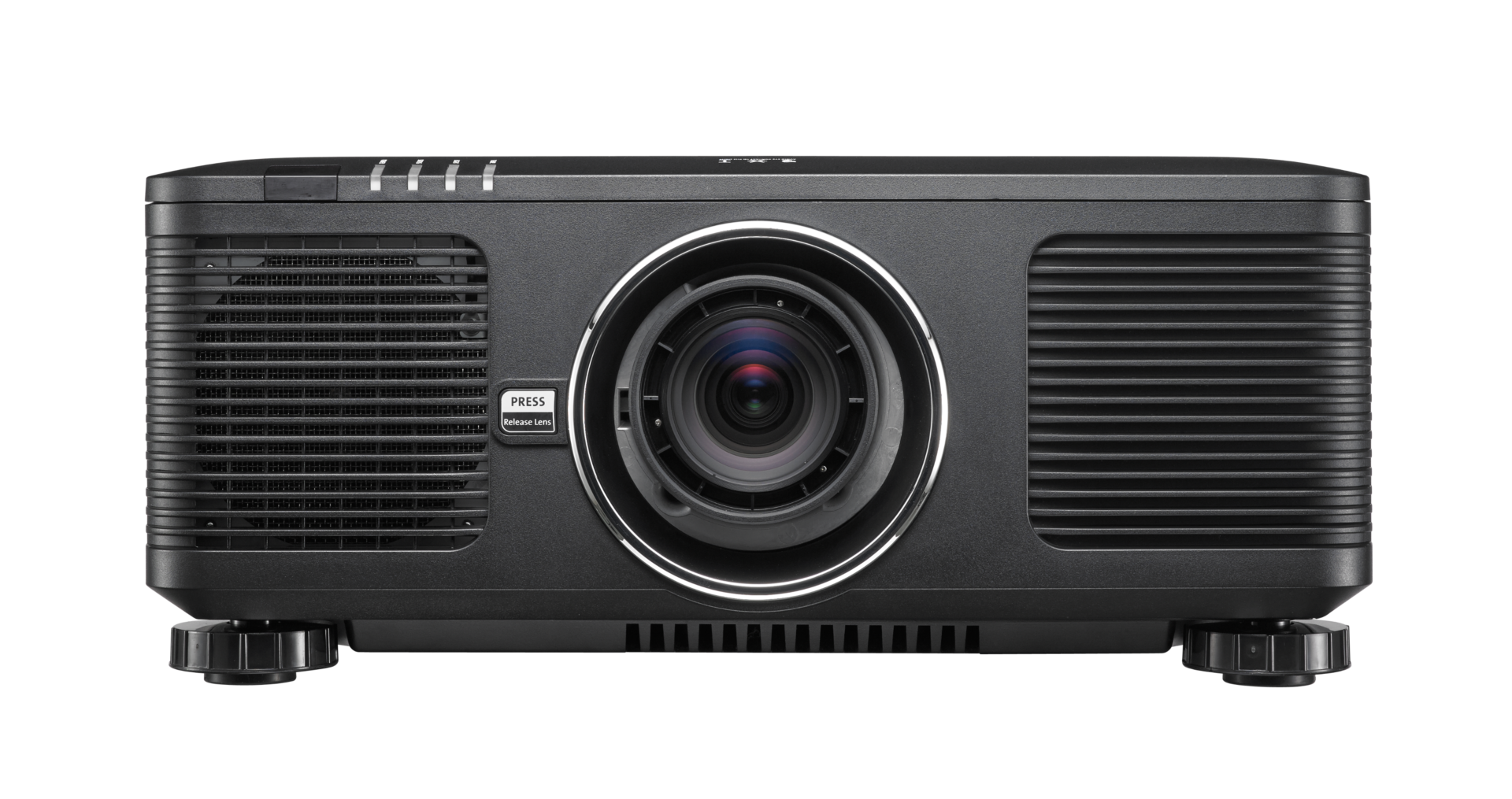

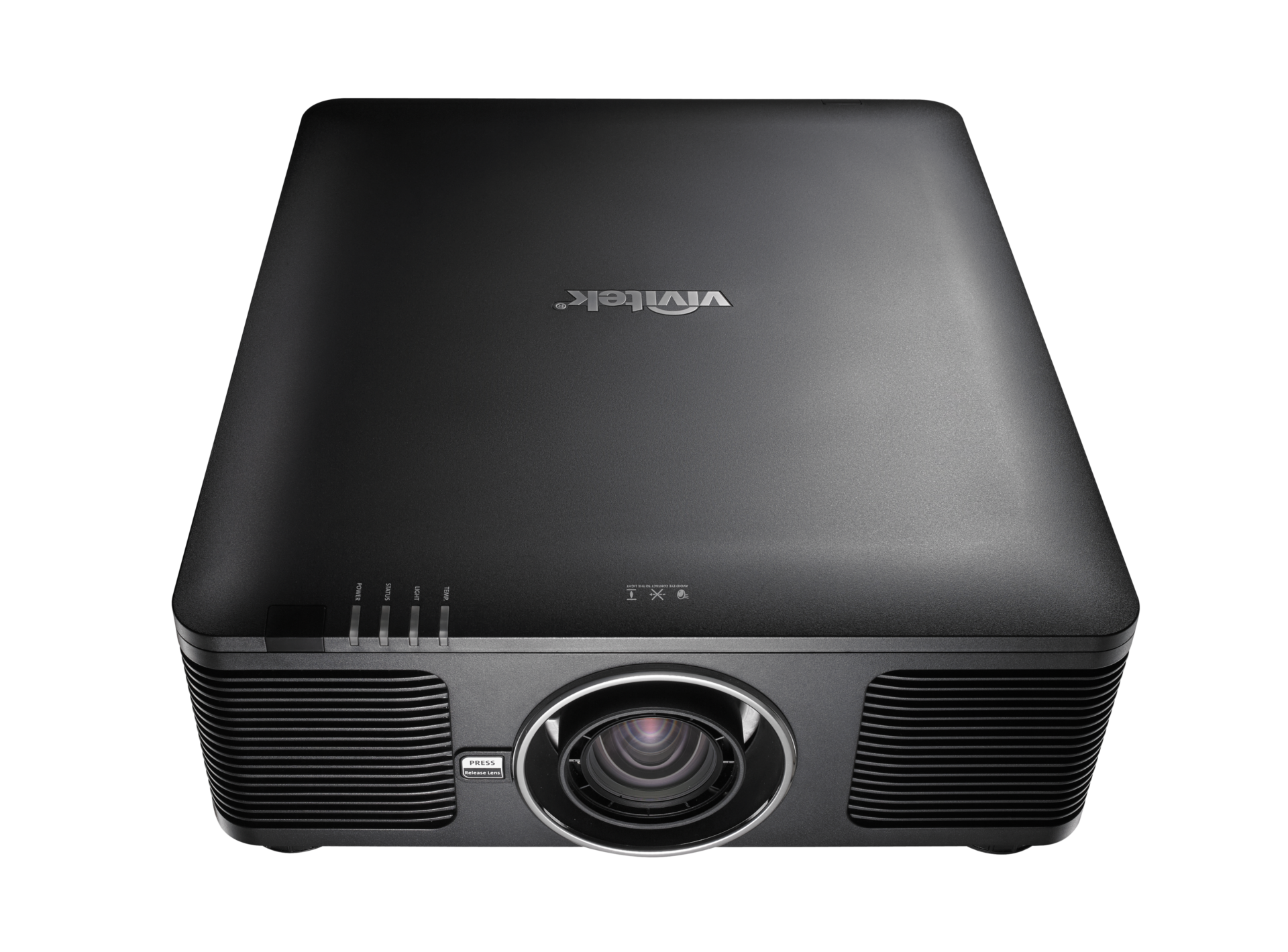

The DK10000Z offers exceptional picture clarity in 4K-UHD resolution and 10,000 ANSI lumens brightness. Compared to traditional and large - 3chip 4K projectors, the DK10000Z is a compact choice in this category, with a smaller footprint weighing less than 29kg. This is thanks to it utilising Texas Instruments’ single chip 4K-UHD XPR technology that delivers a stunning 8.3 million pixels and perfect alignment using a single chip DLP system.
PRODUCT SPECIFICATION
Native Resolution |
UHD (3840 x 2160) with SP on |
Brightness |
10000 ANSI Lumens |
Contrast Ratio |
10,000:1 |
Max. Supported Resolution |
UHD (3840 x 2160) @60Hz |
Native Aspect Ratio |
16:9 |
Lamp Life and Type |
Lamp free design. Laser light source lasts up to 20,000 hours |
Display Type |
Single chip DLP® Technology by Texas Instruments |
Chip Size |
0.66” DMD |
Throw Ratio |
8 optional lenses from 0.377:1 to 8.26:1 throw ratio range |
Zoom Ratio |
Motorized Zoom & Focus |
Lens Shift Range |
Vertical: +64%, -33%; Horizontal: +24%, -14% |
Offset |
Motorized Lens Shift |
Keystone Correction |
Vertical: +/-40°; Horizontal: +/-60° |
Video Compatibility |
SDTV (480i, 576i) / EDTV (480p, 576p) / HDTV (720p, 1080i, 1080p, 4K-UHD) |
I/O Connection Ports |
HDMI Number of Ports (x2), Display Port, RJ45 (x2: HDBaseTx1, LANx1), 12v Trigger (x2), RS-232, 3G-SDI (x2: In and Out), Remote Jack(wire remote) |
Dimensions (W x D x H) |
500 x 580 x 205 mm |
Weight |
28 kg |
Noise Level |
40dB (Normal Mode) |
Power |
Supply: AC 100-240V. 50/60Hz. Consumption: <0.5W (Standby) |
Standard Accessories |
User Manual (CD), Lens Cap, Warranty Card (by region), Remote Controller (with battery), AC Power Cord |
Optional Accessories |
Remote Control P/N: 5041848301 |
Warranty |
Large Venue Laser Phosphor Warranty: 5 Year projector / 5 years or 20.000h on the Laser Phosphor illumination source.(Whichever comes first) |
UPC Code |
DK10000Z-BK: 813097024404 |
