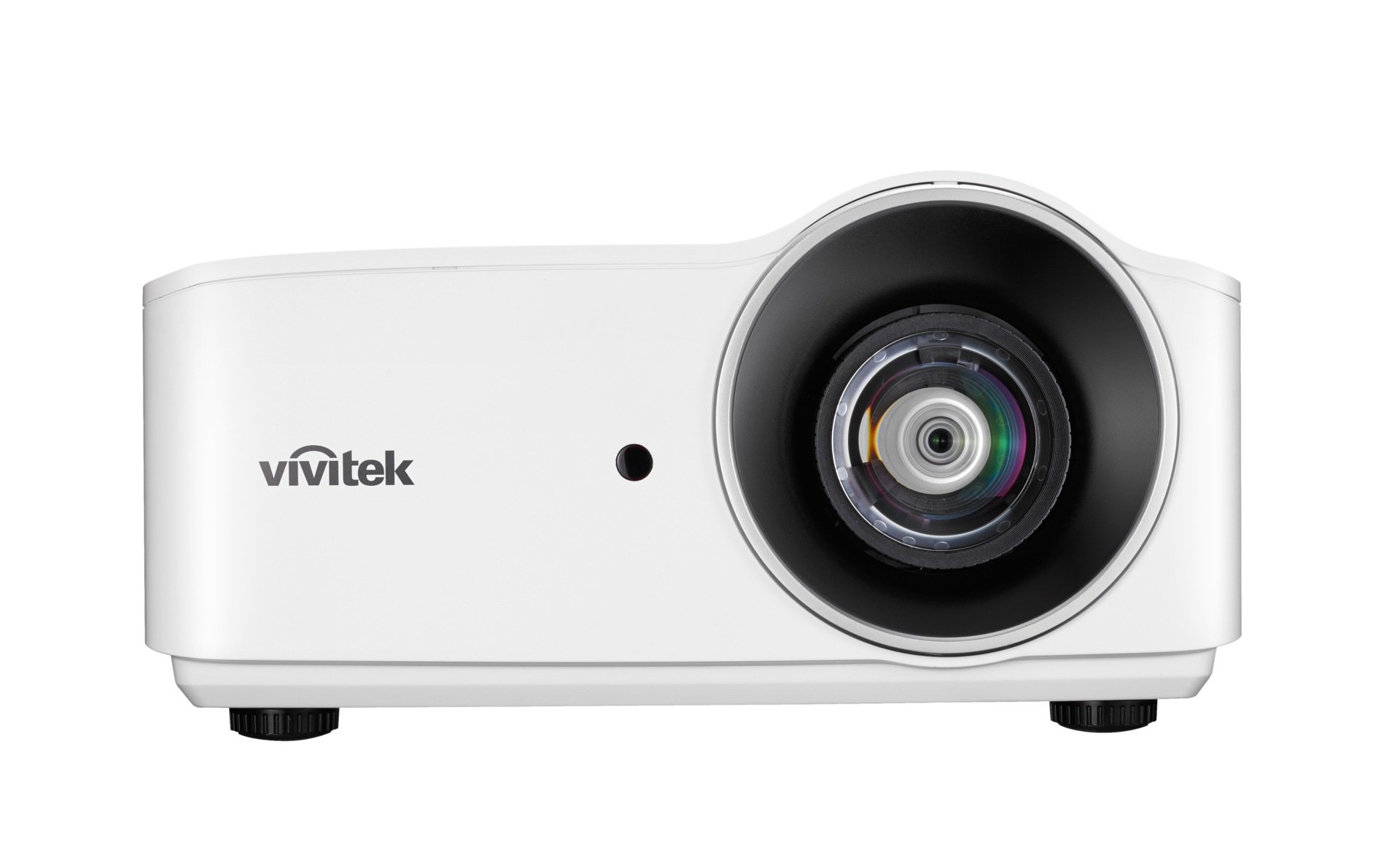

DU4381Z-ST

Vivitek | WUXGA Laser Projector

özellik ikonu

6100 ANSI Lumens

özellik ikonu

WUXGA (1920x1200)

özellik ikonu

30 000 :1 contrast ratio

özellik ikonu

60" - 325" image

özellik ikonu

Single chip DLP®

Experience the difference with the ultimate short-throw projector DU4381Z-ST that provides effortless and discreet positioning options in close proximity to the projected surface. This versatile WUXGA laser projector offers an impressive picture with a brightness of 6100 lumens. Along with 0.5 short throw lens, 360-degree positioning option and optimal thermal management allow for a picture perfect installation both in single set up as well as in mapping applications.

PRODUCT SPECIFICATION

Native Resolution

WUXGA (1920x1200)

Brightness

6100 ANSI Lumens

Contrast Ratio

30,000 :1

Max. Supported Resolution

WUXGA (1920x1200)

Native Aspect Ratio

16:10

Display Type

Single chip DLP® Technology by Texas Instruments

Chip Size

0.67" S600HB

Throw Ratio

0.5:1

Image Size (Diagonal)

60" - 325"

Projection Distance

0.65 - 3.5 m

Projection Lens

F/2.8 , f=7.46 mm

Zoom Ratio

Fixed

Focus

Manual

Offset

121%(Full) / 110.5%(Half)

Keystone Correction

Vertical: +/-15°, Horizontal +/-15°

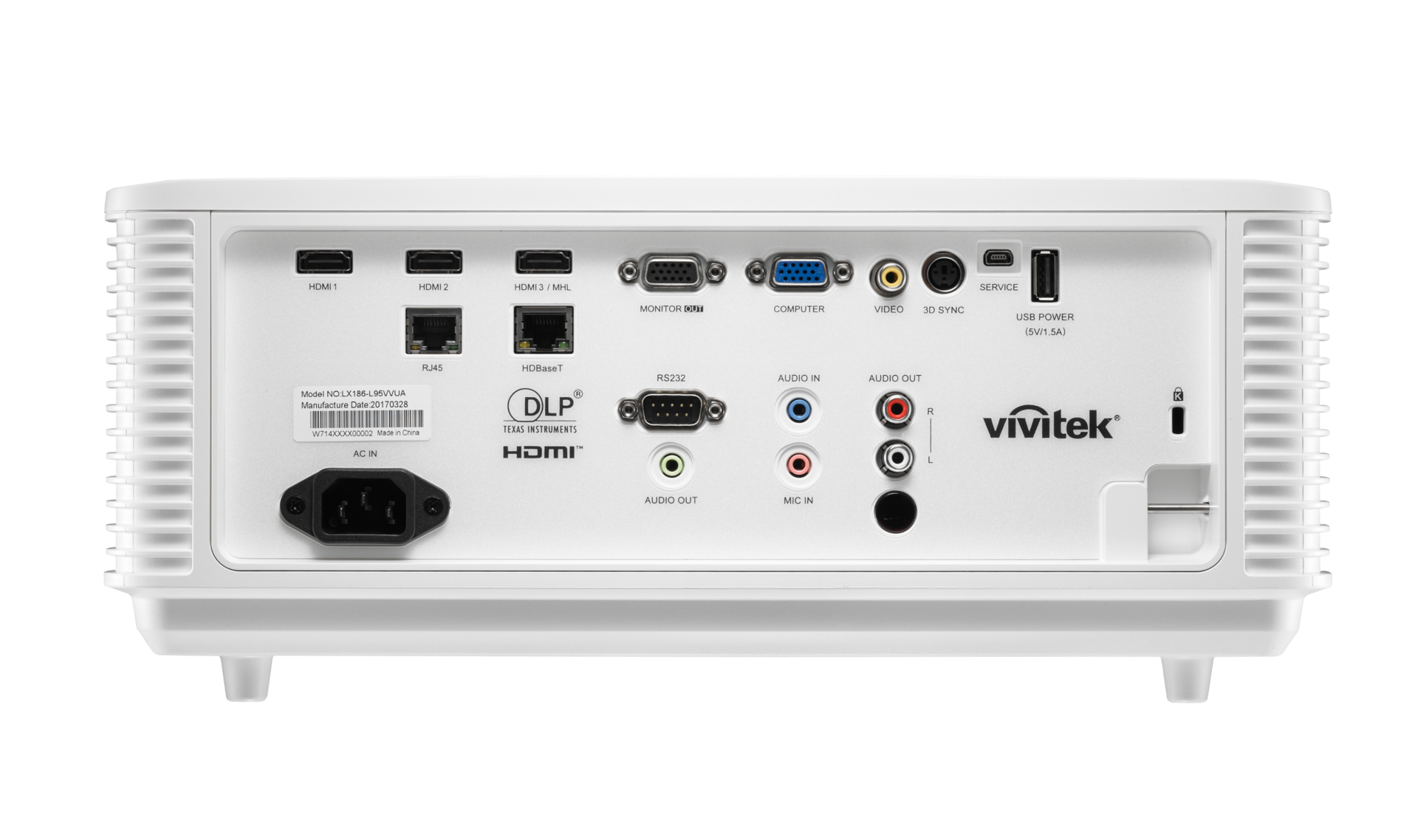

I/O Connection Ports

VGA-In (15pin D-Sub) (1x), HDMI (3x), Composite Video (1x), Audio-In (RCA) (1x), Audio-In (Mini-Jack) (1x), VGA-Out (15pin D-Sub) (1x), RJ45 (2x LAN / HDBaseT), IP Telnet Capable Over RJ-45, RS-232 (1x), 3D-Sync (1x 3D Sync out), USB A (1x 5V 1.5A), USB miniB (Service), Microphone (Mini-Jack) (1x), Remote Jack(wire remote)

Dimensions (W x D x H)

360 x 440 x 186.3 mm

Weight

10.5 kg

Noise Level

36dB/34dB (Normal/Eco. Mode)

Power

AC 100-240V, 50/60Hz

Control Software

PJ - Control V3.0.0.4

3D Ready(DLP link, PC+Video)

Yes

Standard Accessories

Quick Start Guide, Warranty Card (by region), Remote Controller (with battery), R/C Wire 3.5mm Jack, AC Power Cord

Optional Accessories

Remote Control P/N: 5041846602

Warranty

Standard Laser Phosphor Projector Warranty: 5-Year warranty on projector/ 5-year or 10000h on the Laser Phosphor illumination source (whichever comes first)

UPC Code

813097025708
