VIVITEK
DU6298Z
Large Venue Projector
- 10000 ANSI Lumen
- WUXGA (1920 x 1200)
- 3.000.000:1 contrast
- 16:10
The DU6298Z WUXGA is an extreme versatile large venue projector, designed to deliver a brightness of 10,000 ANSI Lumens, 30,000:1 contrast ratio for outstanding picture quality and high flexibility for installation. With Vivitek’s next-generation colour technology, multiple modes, hardware features and High Dynamic Range (HDR10) support, DU6298Z users can be assured of rich, vibrant and precise colours that help create brilliant, accurate, high contrast, full spectrum images. With a user-friendly projector control tool and support for nine motorized lenses, the projectors are specifically designed to handle portrait mode installation and 360° operation for projection from virtually any angle.
Specs
Display Type
Single chip DLP® Technology by Texas Instruments
Brightness
10000 ANSI Lumens
Resolution
WUXGA (1920 x 1200)
Max. Supported Resolution
UHD (3840x2160) @60Hz
Contrast Ratio
Dynamic Contrast Ratio 3,000,000:1
Aspect Ratio
16:10
Keystone Correction
Vertical: +/-30 Steps; Horizontal: +/-30 Steps
Throw Ratio
9 optional lenses from 0.38 to 8.26:1 throw ratio range
Zoom Ratio
1.25x Power Zoom / Power Focus
Lens Shift Range
Vertical: -15% to +55%, Horizontal: -5% to +5%
Features
3D Ready(DLP link, PC+Video), Direct 3D (HDMI 1.4a), 3D Mandatory Formats supported (top/bottom, right/left, frame sequential), Instant On/Off

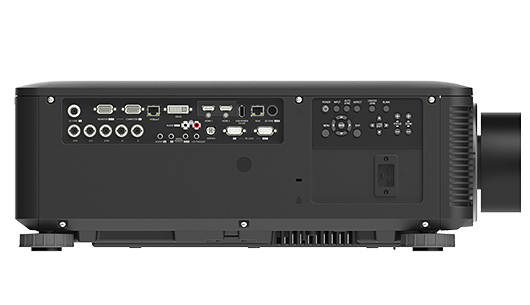

I/O Connection Ports
VGA-In (15pin D-Sub), HDMI Number of Ports v2.0 (2x), DVI-D, Component (5 BNC) (RGBHV) , Audio-In (RCA) , VGA-Out (15pin D-Sub), Audio-Out (RCA), Audio-Out (Mini-Jack), RJ45 ( HDBaseT/LAN), 12v Trigger, RS-232 (In 1x / Out 1x), 3D-Sync (3D-Sync In 1x/Out 1x), USB A ( Power: 5V/2.0A), USB miniB (for Service), Microphone (Mini-Jack), Remote Jack(wire remote)
Lamp Life and Type
Laser light source lasts up to 20,000 hours
Dimensions (W x D x H)
580 x 500 x 210 mm
Noise Level
38dB/35dB (Normal/Eco. Mode)
Power
950W (Normal Mode), 760W (Eco. Mode), <0.5W (Standby Mode), <2W (LAN Standby Mode)
Control Software
Projector Installation Control Tool
Warranty
Large Venue Laser Phosphor Warranty: 5 Year projector / 5 years or 20.000h on the Laser Phosphor illumination source.(Whichever comes first)
Standard Accessories
VGA Cable, User Manual (CD), Lens Cap, Quick Start Guide, Warranty Card (by region), Remote Controller (with battery), AC Power Cord, Remote Control Cable
Optional Accessories
Remote Control P/N (5042221900)
UPC Code
DU6289Z-BK: 813097024428
