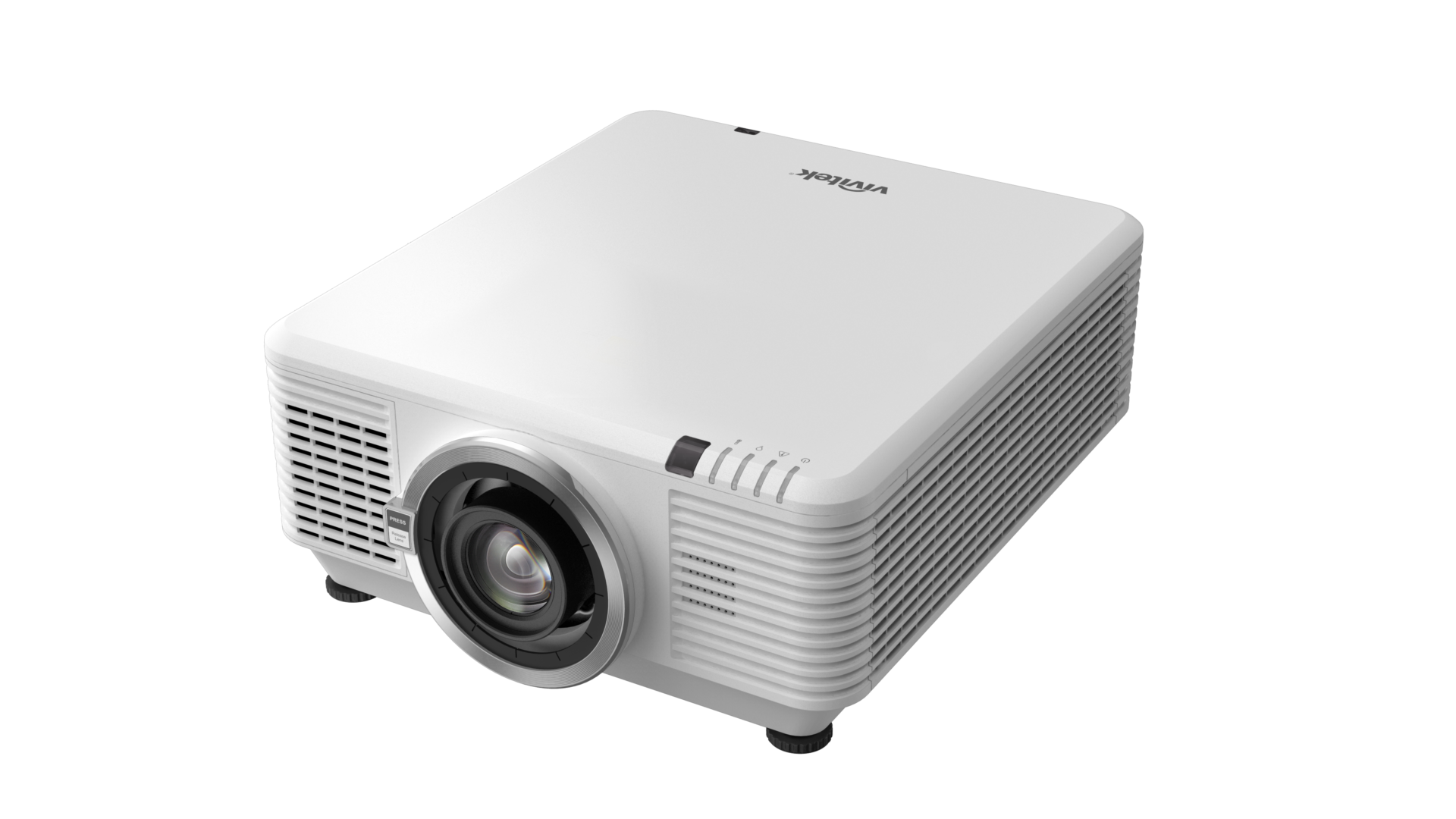

VIVITEK

DU7199Z

WUXGA Laser Projector

8600 ANSI Lumens
WUXGA (1920 x 1200)
20 000:1 contrast ratio
16:10

The DU7199Z laser projector is an excellent choice for mid to large corporate meeting rooms, offering a low total cost of ownership. It provides remarkable value to companies seeking maintenance-free durability for up to 20,000 hours, along with easy installation and management. The DU7199Z ensures superior visibility with 8,600 ANSI lumen brightness, vivid true-to-life colors in the Rec. 709 color space, and exceptionally quiet 35dB operation. Furthermore, it can be enhanced with Vivitek’s NovoConnect Solution for wireless presentation and collaboration.

Specs

Display Type

Single chip DLP® Technology by Texas Instruments

Brightness

8600 ANSI Lumens

Native Resolution

WUXGA (1920 x 1200)

Max. Supported Resolution

4K-UHD (3840 x 2160) @60Hz

Contrast Ratio

20,000:1

Native Aspect Ratio

16:10

Keystone Correction

Vertical +/-30°; Horizontal +/-30°

Throw Ratio

9 optional lenses from 0.50:1 to 8.3 :1 throw ratio range

Zoom Ratio

Manual Zoom & Focus

Offset

Motorized Lens Shift

Lens Shift Range

Vertical: Bottom 50% to Top 70%, Horizontal: Left 15% to Right 15%

Features

3D Features, 3D Ready(DLP link, PC+Video), Direct 3D (HDMI 1.4a), 3D Mandatory Formats supported (top/bottom, right/left, frame sequential), Keypad lock Compatibility

Video

SDTV (480i, 576i) / EDTV (480p, 576p) / HDTV (720p, 1080i, 1080p), NTSC (M, 3.58/4.43 MHz), PAL (B,D,G,H,I,M,N) SECAM (B,D,G,K,K1,L), 4K-UHD

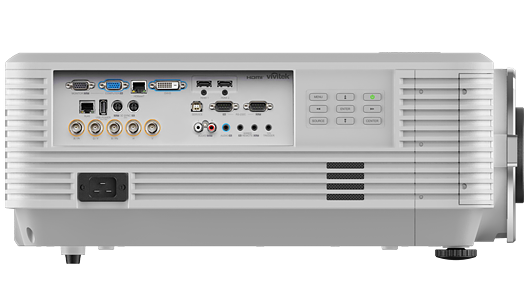

I/O Connection Ports

VGA-In (15pin D-Sub), HDMI Number of Ports v.2.0 (x2), DVI-D, Component (5 BNC) (RGBHV) , Composite Video, Audio-In (RCA) , Audio-In (Mini-Jack), VGA-Out (15pin D-Sub), Audio-Out (RCA), RJ45 (x2: LANx1, HDBaseTx1), RS-232 (x2: In and Out), 3D-Sync (x2: In and Out), USB A (Power Only), USB B (Service), Remote Jack(wire remote)

Lamp Life and Type

Lamp free design. Laser light source lasts up to 20,000 hours

Dimensions (WxDxH)

470 x 517 x 202mm

Noise Level

35dB/33dB (Normal/Eco. Mode)

Power

Supply: AC 100-240V, 50/60Hz Consumption: 540W (Normal Mode), <0.5W (Standby)

Control Software

PJ - Control V3.0.0.4

Warranty

Large Venue Laser Phosphor Warranty: 5 Year projector / 5 years or 20.000h on the Laser Phosphor illumination source.(Whichever comes first)

Standard Accessories

VGA Cable, Lens Cap, Quick Start Guide, Warranty Card (by region), Remote Controller (with battery), AC Power Cord

Optional Accessories

Remote Control P/N (5042221900)

UPC Code

DU7199Z-WH: 813097024459; DU7199Z-BK: 813097024541

Documents

Accessories

5042221900

Lenses

D86-04705

Short Throw (F)
Atım Oranı: 0.47 – 0.5
Parça No: SS-D86-04705PL-VVW

D86-0711

Short Throw (Z)
Atım Oranı: 0.77 – 1.1
Parça No: SS-5811129741-VV

D86-1113

Normal Throw 1
Atım oranı: 1.1 – 1.3
Parça No: SS-5811129742-VV

D86-1216

Normal Throw 2
Atım Oranı: 1.25 – 1.60: 1
Parça No: SS-5811131167-VV

D86-1519

Standard Lens
Atım Oranı: 1.54-1.93: 1
Parça no: SS-5811129740-VV

D86-1929

Long Throw 1
Atım Oranı: 1.93-2.9
Parça No: SS-5811131168-VV

D89-SMLZ01

Long Throw 2
Atım Oranı: 2.1-4.0
Parça No: SS-5811141776-VV

D88-LOZ101

Long Throw 3
Atım Oranı: 3.58-5.38:1
Parça No: 3797745400-SVK

D88-LOZ201

Long Zoom 4
Atım Oranı: 5.31-8.26:1

Parça No: 3797744900-SVK
