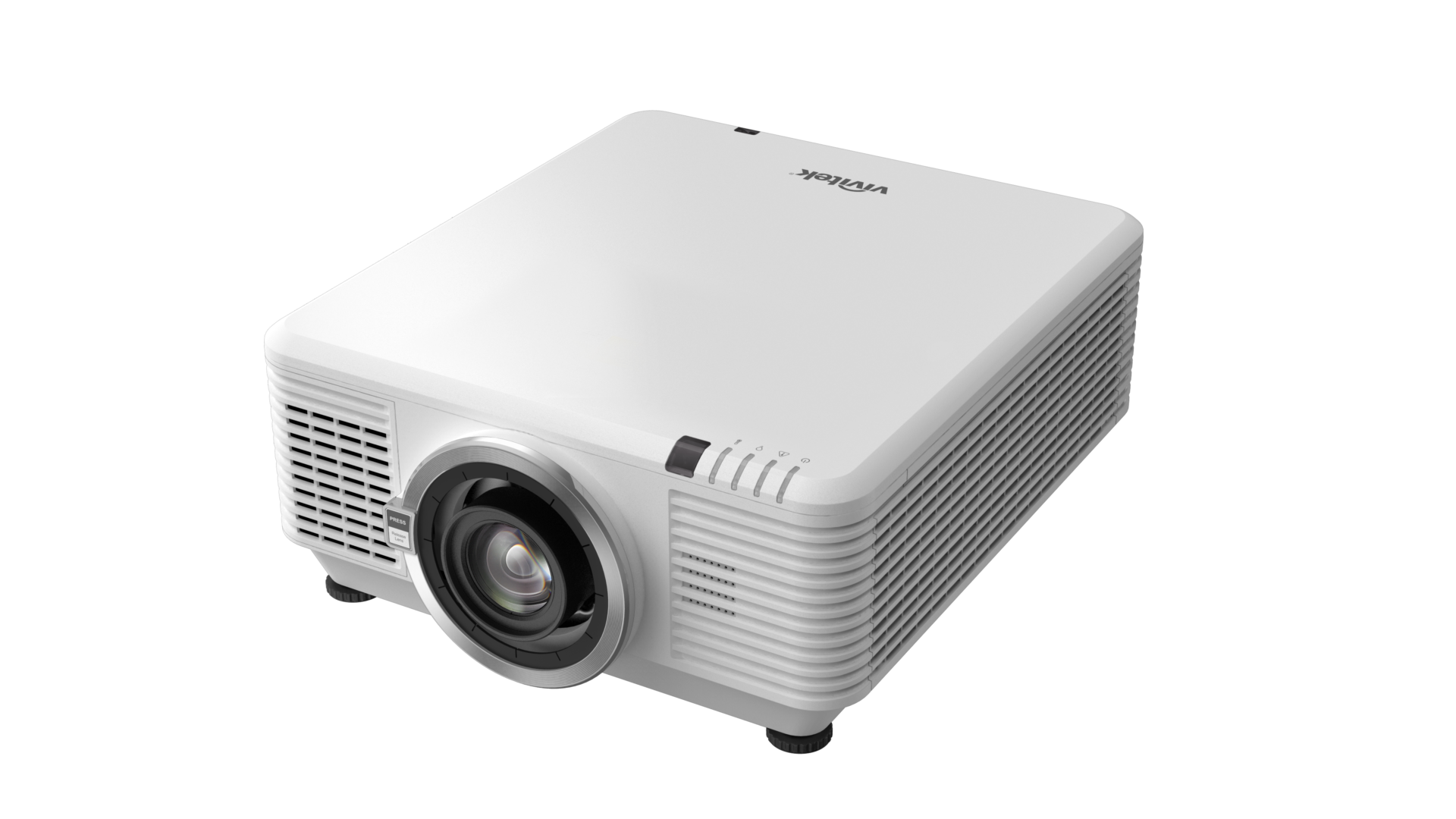

VIVITEK

DU7299Z

WUXGA Laser Projector

9000 ANSI Lumens
WUXGA (1920 x 1200)
20 000:1 contrast ratio
16:10

A smart choice for mid to large corporate meeting rooms thanks to its low total cost of ownership, the DU7295Z laser projector packs tremendous value for companies seeking maintenance-free durability up to 20,000 hours with easy installation and management. DU7295Z ensures superior visibility with 9,000 ANSI lumen brightness and vibrant true-to-life colors with Rec. 709 color space, along with exceptionally quiet 33dB operation. Furthermore, the DU7295Z can be complemented with Vivitek’s NovoConnect Solution for wireless presentation and collaboration.

Specs

Native Resolution

WUXGA (1920 x 1200)

Brightness

9000 ANSI Lumens

Contrast Ratio

20,000:1

Max. Supported Resolution

4K-UHD (3840 x 2160) @60Hz

Native Aspect Ratio

16:10

Lamp Life and Type

Lamp free design. Laser light source lasts up to 20,000 hours

Display Type

Single chip DLP® Technology by Texas Instruments

Chip Size

0.67” DMD

Throw Ratio

7 optional lenses from 0.78:1 to 3.0-5.0:1 throw ratio range

Zoom Ratio

Manual Zoom & Focus

Lens Shift Range

Manual; Vertical +55%, -15%; Horizontal +/-5%

Offset

Manual Lens Shift

Keystone Correction

Vertical +/-30°; Horizontal +/-25°

Video Compatibility

SDTV (480i, 576i) / EDTV (480p, 576p) / HDTV (720p, 1080i, 1080p), NTSC (M, 3.58/4.43 MHz), PAL (B,D,G,H,I,M,N) SECAM (B,D,G,K,K1,L), 4K-UHD

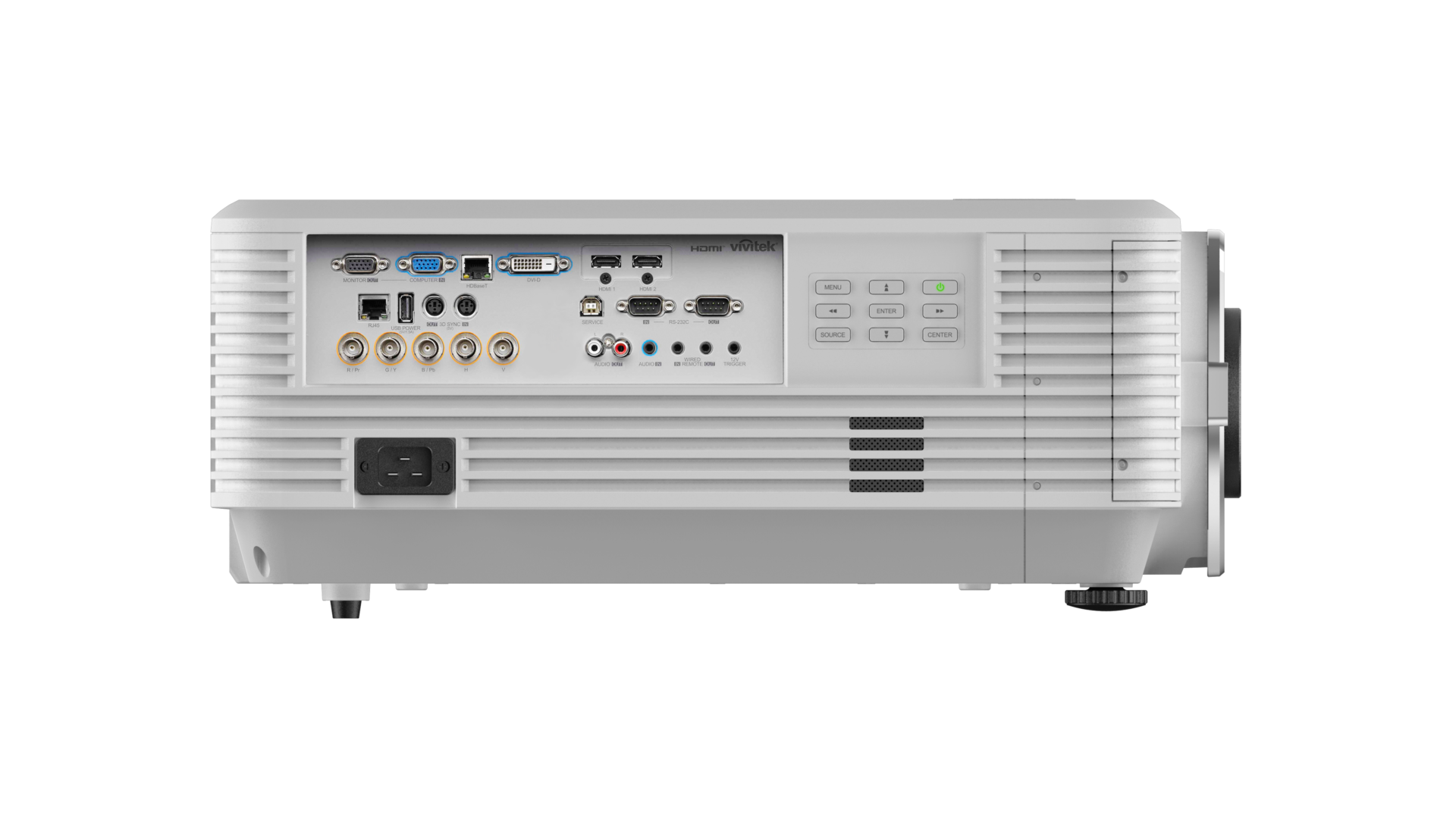

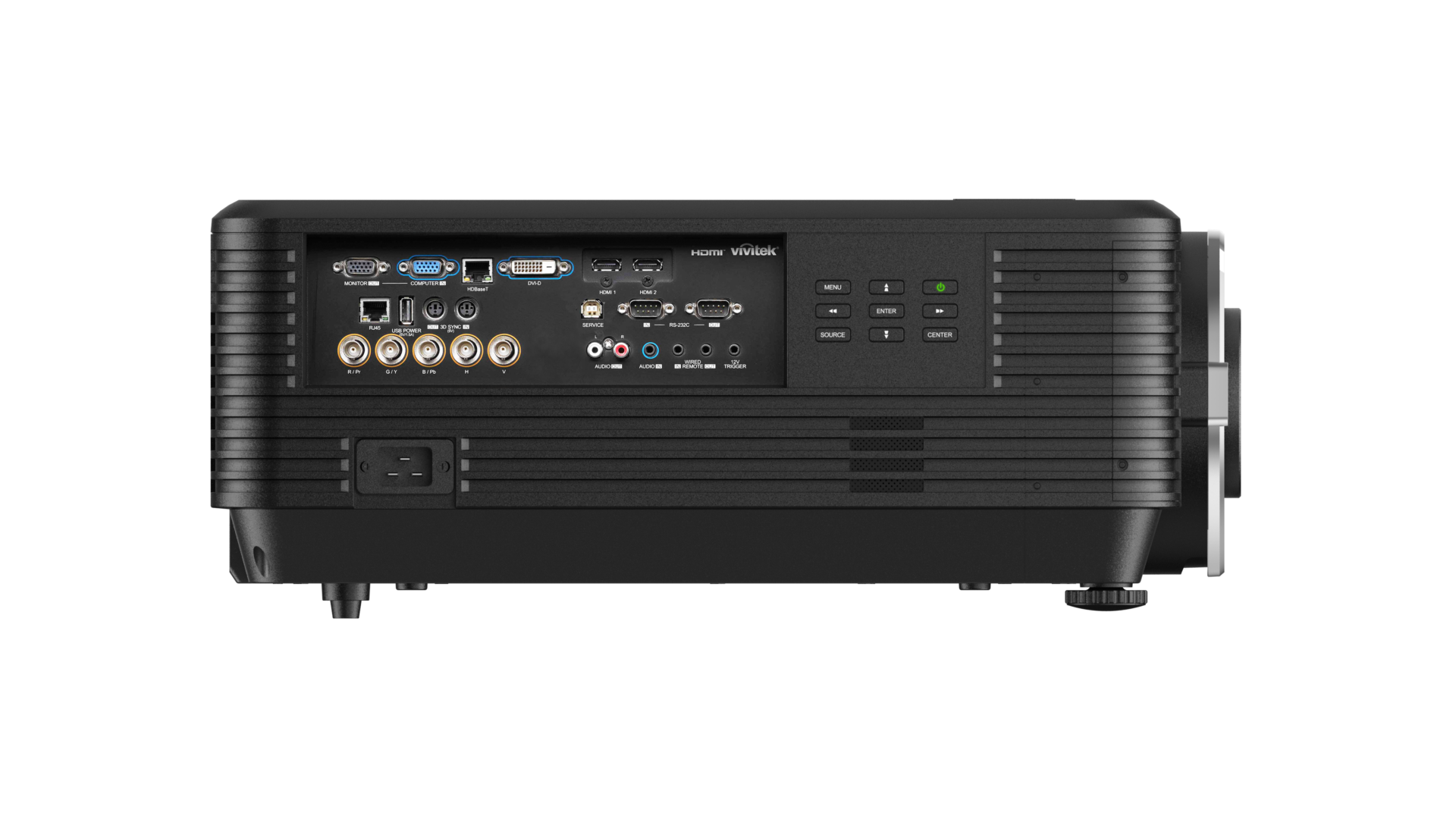

I/O Connection Ports

VGA-In (15pin D-Sub), HDMI (x2), DVI-D, Component (5 BNC) (RGBHV) , Composite Video, Audio-In (RCA) , Audio-In (Mini-Jack), VGA-Out (15pin D-Sub), Audio-Out (RCA), RJ45 (x2: LANx1, HDBaseTx1), 12v Trigger, RS-232 (x2: In and Out), 3D-Sync (x2: In and Out), USB A (Power Only), USB B (Service), Remote Jack(wire remote)

Dimensions (W x D x H)

470 x 517 x 202 mm

Weight

25 kg

Noise Level

36dB/33dB (Normal/Eco. Mode)

Control Software

PJ - Control V3.0.0.4

3D Ready(DLP link, PC+Video)

Yes

Standard Accessories

VGA Cable, Lens Cap, Quick Start Guide, Warranty Card (by region), Remote Controller (with battery), AC Power Cord

Optional Accessories

Remote Control P/N: 5041846600

Warranty

Large Venue Laser Phosphor Warranty: 5 Year projector / 5 years or 20.000h on the Laser Phosphor illumination source.(Whichever comes first)

UPC Code

DU7295Z-WH: 813097024459; DU7295Z-BK: 813097024541

Documents

Accessories

5042221900

Lenses

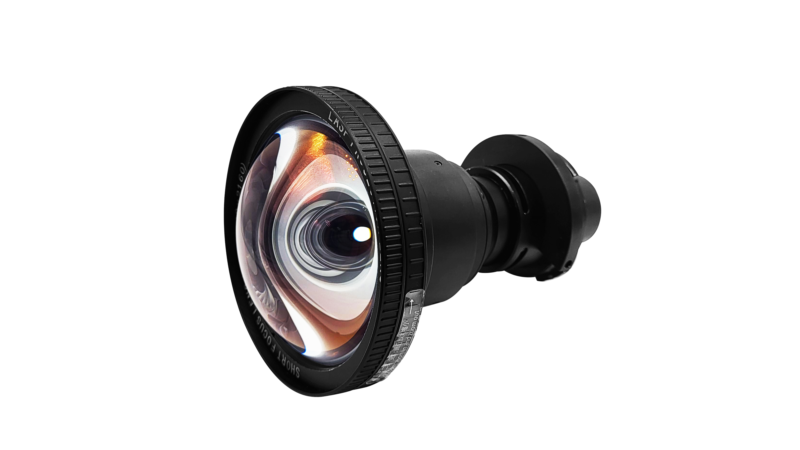

D86-04705

Short Throw (F)
Atım Oranı: 0.47 – 0.5
Parça No: SS-D86-04705PL-VVW

D86-0711

Short Throw (Z)
Atım Oranı: 0.77 – 1.1
Parça No: SS-5811129741-VV

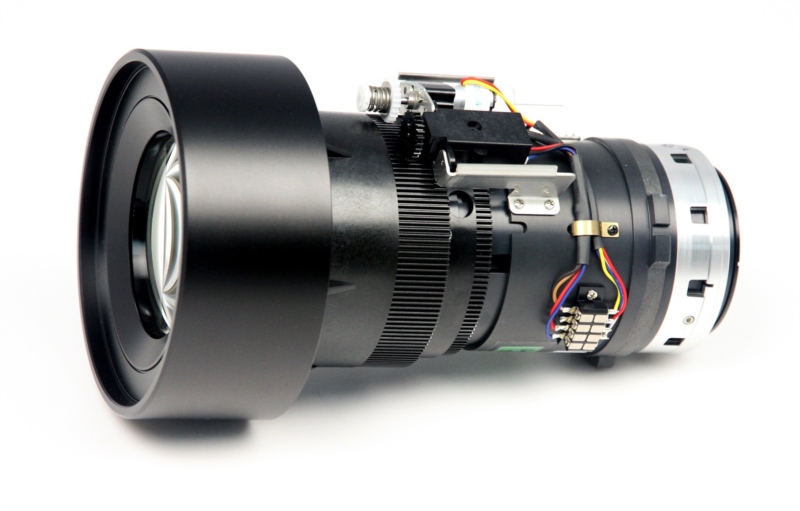

D86-1113

Normal Throw 1
Atım oranı: 1.1 – 1.3
Parça No: SS-5811129742-VV

D86-1216

Normal Throw 2
Atım Oranı: 1.25 – 1.60: 1
Parça No: SS-5811131167-VV

D86-1519

Standard Lens
Atım Oranı: 1.54-1.93: 1
Parça no: SS-5811129740-VV

D86-1929

Long Throw 1
Atım Oranı: 1.93-2.9
Parça No: SS-5811131168-VV

D89-SMLZ01

Long Throw 2
Atım Oranı: 2.1-4.0
Parça No: SS-5811141776-VV

D88-LOZ101

Long Throw 3
Atım Oranı: 3.58-5.38:1
Parça No: 3797745400-SVK

D88-LOZ201

Long Zoom 4
Atım Oranı: 5.31-8.26:1

Parça No: 3797744900-SVK
