VIVITEK

DU8395Z

Large Venue Laser Projector

15000 ANSI Lumen
WUXGA (1920 x 1200)
30.000:1 contrast
16:10

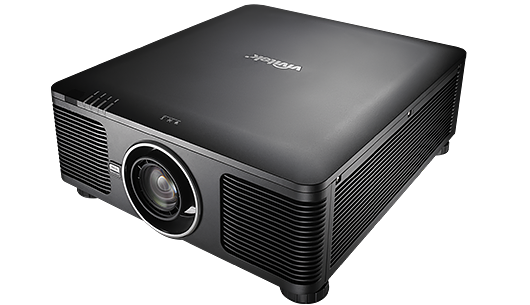

The DU8395Z is designed for advanced projection requirements such as mapping, edge blending or pictureinpicture mode. The WUXGA laser projector offers a constant light output of 15,000 lumens and a 3,000,000:1 dynamic contrast ratio for clear, crisp, and bright projection image. The device offers an compelling mix of features and connectivity options.

Specs

Display Type

Single chip DLP® Technology by Texas Instruments

Brightness

15000 ANSI Lumens

Resolution

WUXGA (1920 x 1200)

Max. Supported Resolution

WUXGA (1920 x 1200) @60Hz

Contrast Ratio

30,000:1 / Dynamic: 3,000,000

Aspect Ratio

16:10

Keystone Correction

Vertical: +/40°; Horizontal: +/60°

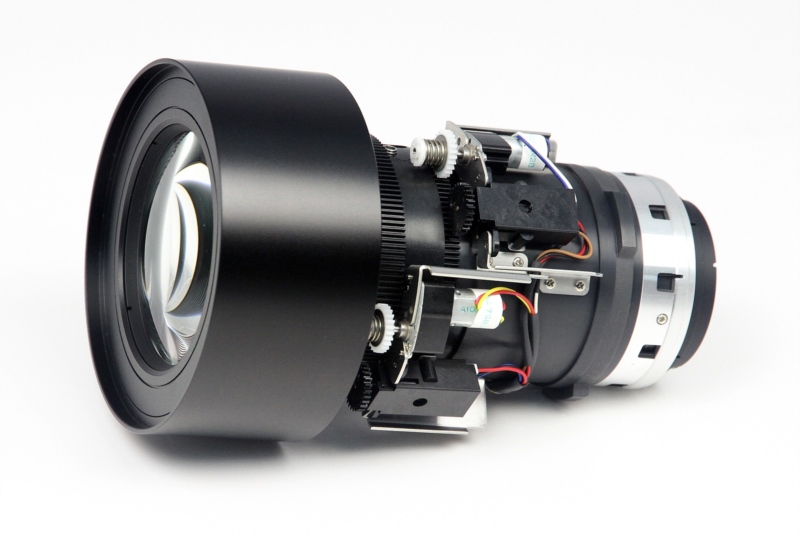

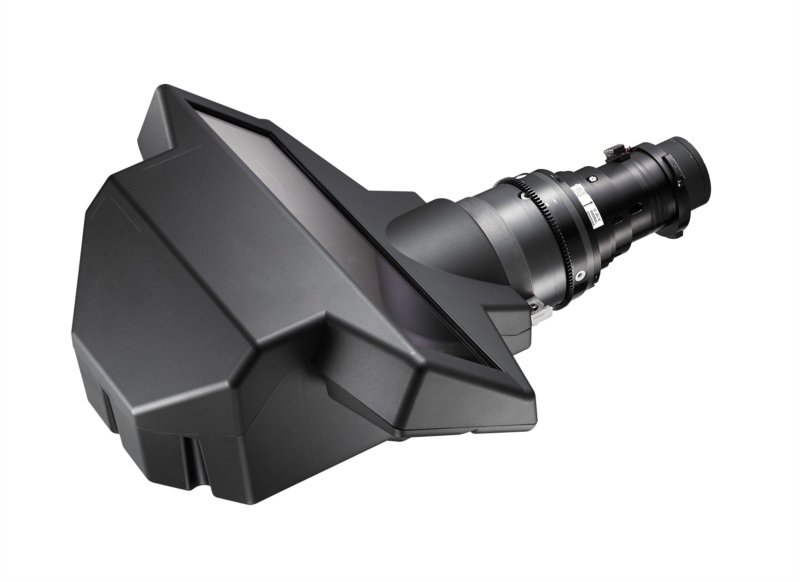

Throw Ratio

8 optional lenses from 0.38 to 8.26:1 throw ratio range

Zoom Ratio

Motorized Zoom & Focus

Offset

Motorized Lens Shift

Lens Shift Range

Vertical: +64%, 33%; Horizontal: +24%, 14%

Features

3D Ready(DLP link, PC+Video), Direct 3D (HDMI 1.4a), 3D Mandatory Formats supported (top/bottom, right/left, frame sequential), Instant On/Off

Video

SDTV (480i, 576i) / EDTV (480p, 576p) / HDTV (720p, 1080i, 1080p), NTSC (M, 3.58/4.43 MHz), PAL (B,D,G,H,I,M,N) SECAM (B,D,G,K,K1,L)

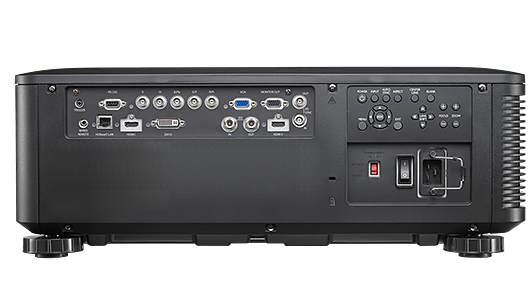

I/O Connection Ports

VGA-In (15pin DSub), HDMI Number of Ports v1.4 (x2), DVID, Component (5 BNC) (RGBHV) , VGAOut (15pin DSub), RJ45 (1: HDBaseT/LAN), 12v Trigger, RS232, 3DSync (x2: In and Out), Remote Jack(wire remote), 3GSDI (x2: In and Out)

Lamp Life and Type

Lamp free design. Laser light source lasts up to 20,000 hours

Dimensions (W x D x H)

500 x 580 x 205 mm

Weight

29 kg

Noise Level

42dB (Eco)

Power

Supply: AC 100240V. 50/60Hz. Consumption: <0.5W (Standby)

Warranty

Large Venue Laser Phosphor Warranty: 5 Year projector / 5 years or 20.000h on the Laser Phosphor illumination source.(Whichever comes first)
