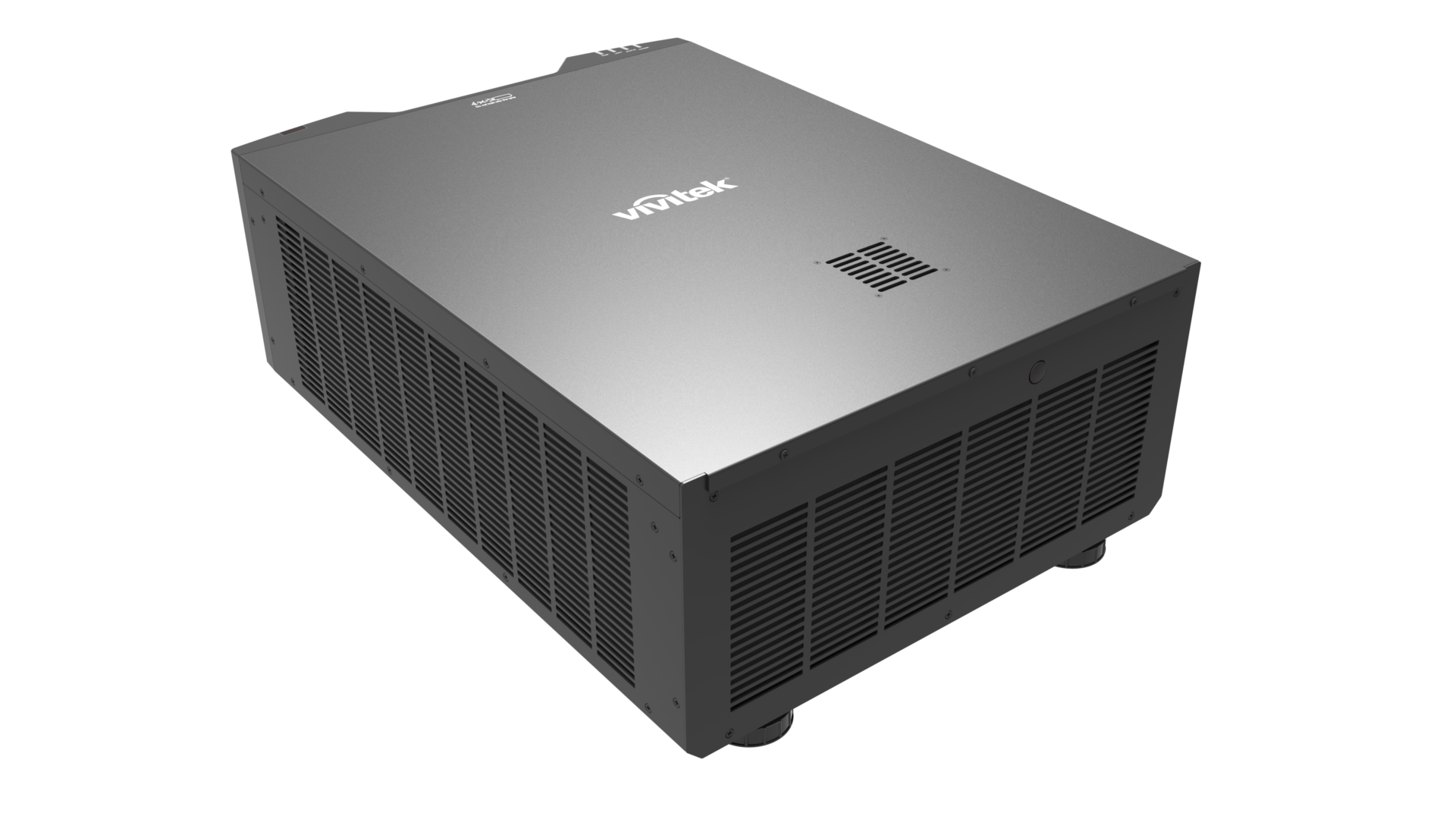

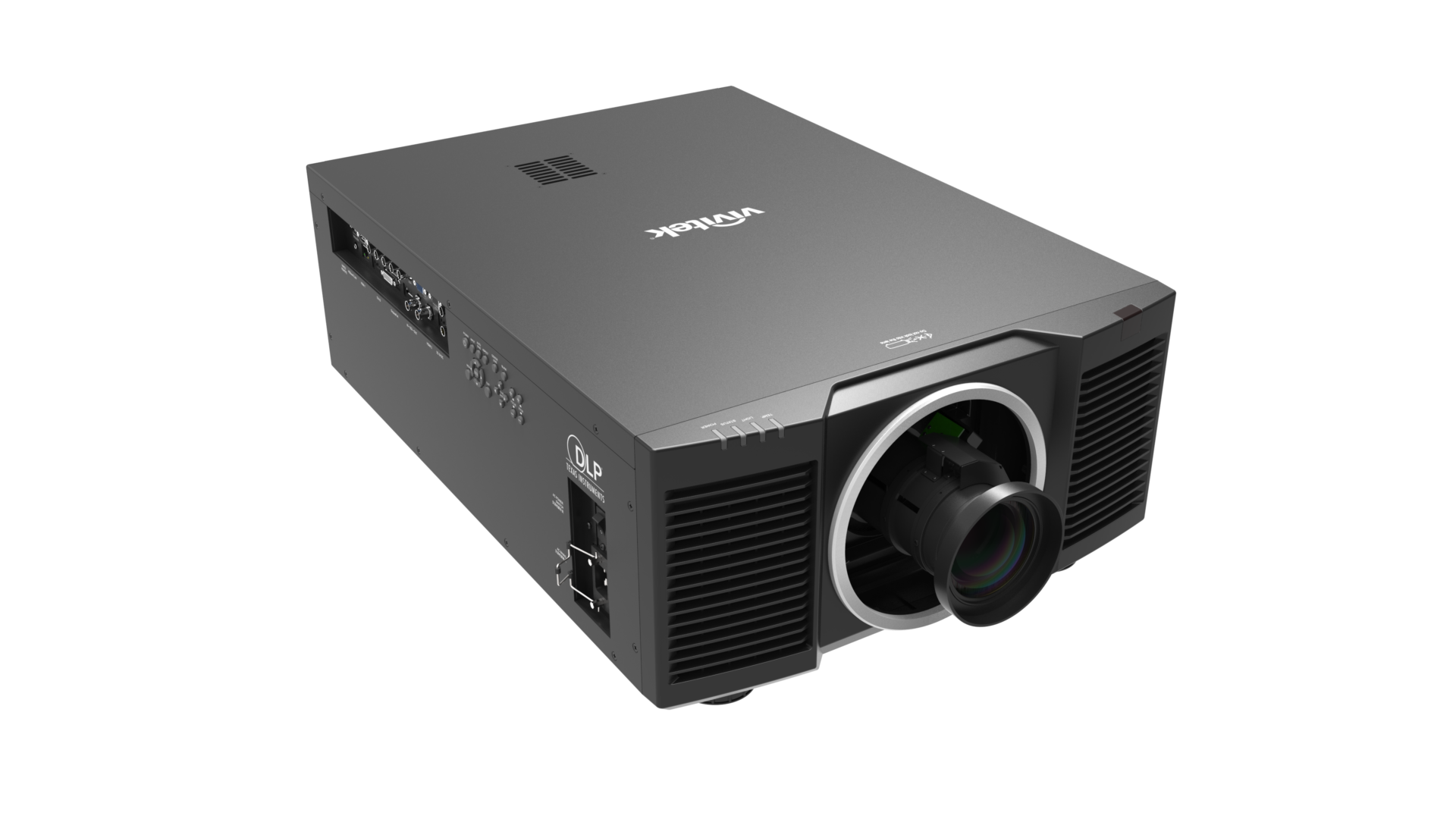

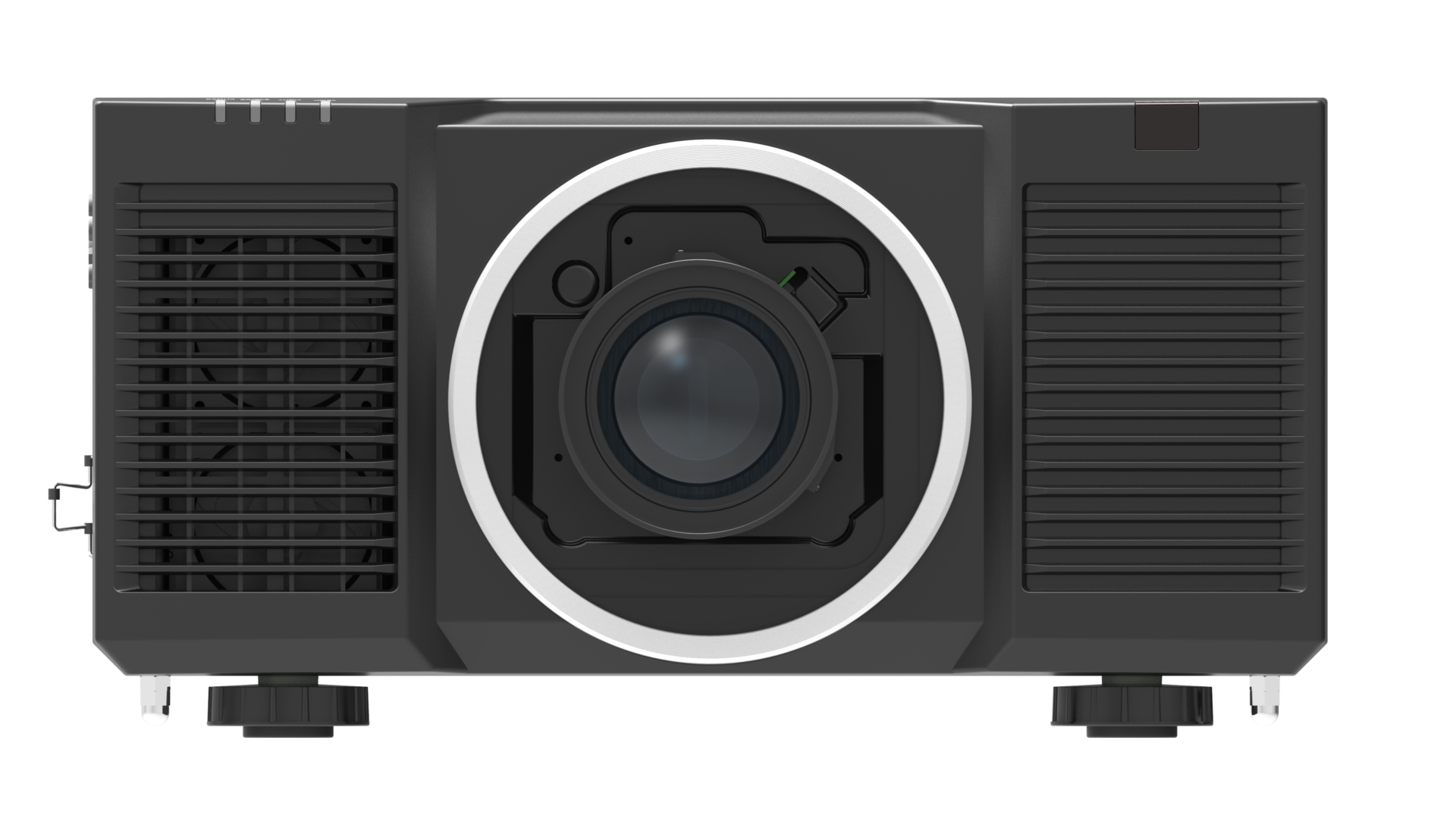

DU9900Z

Vivitek | 22000 Lumen Lazer Projector

22000 ANSI Lumen

WUXGA (1920 x 1200)

3 000 000:1 contrast

40'' - 500'' image

Single chip DLPÂ®

The DU9900Z is designed for ProAV rental, staging and large venue applications. The Single Chip WUXGA laser projector offers a constant light output of 22,000 lumens and a 3,000,000:1 dynamic contrast ratio. The Constant Brightness feature helps reduce blending maintenance with a smart sensor continuously measuring and adjusting the illumination output. The projector can run continuously for 30,000 hours in Eco Mode, guaranteeing 24/7 operation with low user intervention.

PRODUCT SPECIFICATION

Display Type	Single chip DLPÂ® Technology by Texas Instruments
Brightness	22000 ANSI Lumens
Native Resolution	WUXGA (1920 x 1200)
Max. Supported Resolution	WUXGA (1920 x 1200) @60Hz
Contrast Ratio	3,000,000 :1
Native Aspect Ratio	16:10
Keystone Correction	Vertical: +/-40 StepsÍ¾ Horizontal: +/-60 Steps
Throw Ratio	5 optional lenses from 0.84:1 to 7.00:1 throw ratio range
Image Size (Diagonal)	Depending on lens selection
Projection Distance	Depending on lens selection
Zoom Ratio	Motorized Zoom & Focus
Offset	Motorized Lens Shift
Lens Shift Range	Vertical: +/-50%Í¾ Horizontal: +/-15%
Features	3D Ready(DLP link, PC+Video), Direct 3D (HDMI 1.4a), 3D Mandatory Formats supported (top/bottom, right/left, frame sequential), Instant On/Off
Video	SDTV (480i, 576i) / EDTV (480p, 576p) / HDTV (720p, 1080i, 1080p), NTSC (M, 3.58/4.43 MHz), PAL (B,D,G,H,I,M,N) SECAM (B,D,G,K,K1,L)

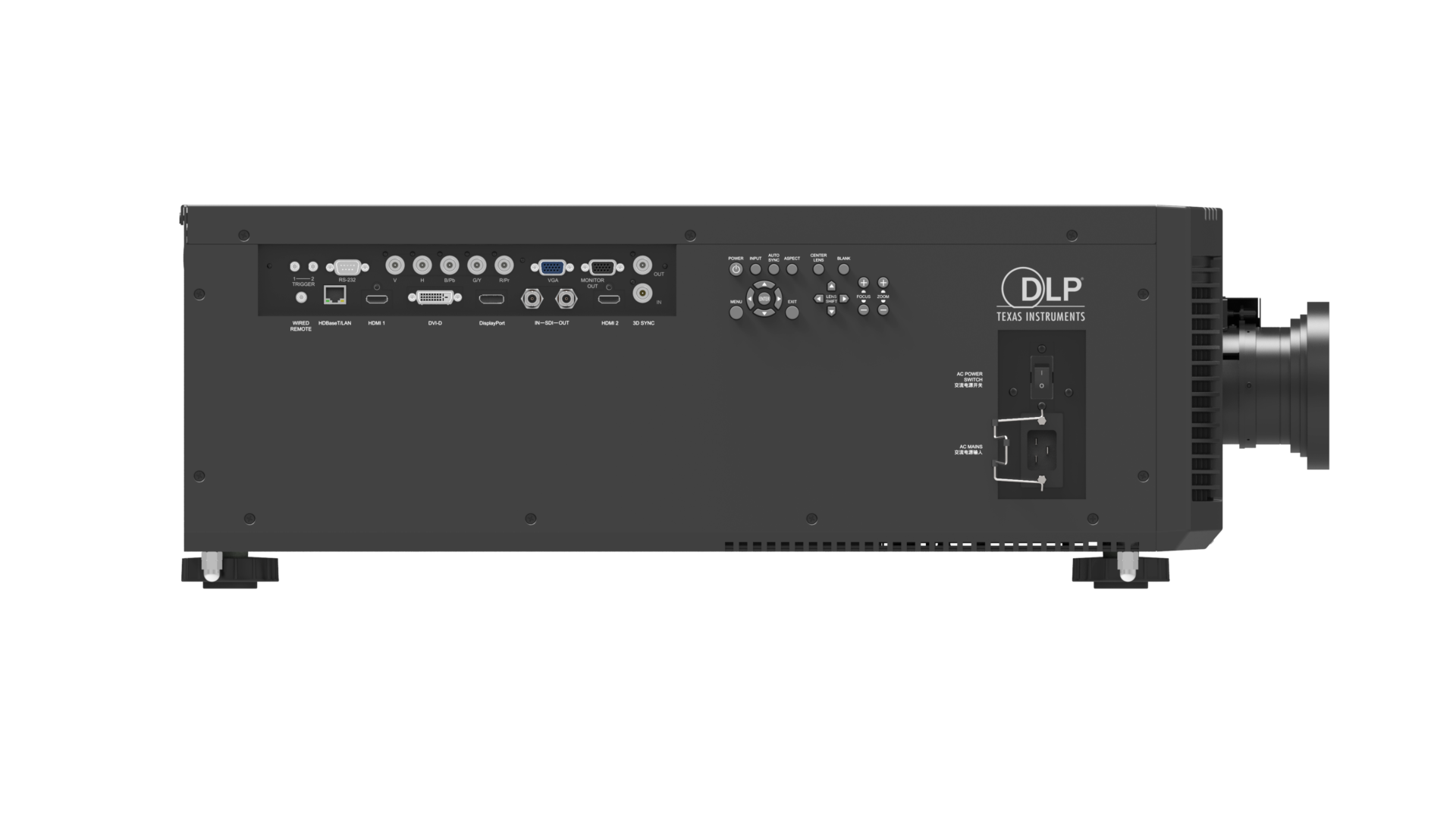

I/O Connection Ports	VGA-In (15pin D-Sub), HDMI Number of Ports (2x), Display Port, DVI-D, Component (5 BNC) (RGBHV) , VGA-Out (15pin D-Sub), RJ45 (1x: HDBaseT/LAN), RS-232, 3D-Sync (2x: In and Out), Remote Jack(wire remote), 3G-SDI (2x: In and Out)
Lamp Life and Type	Lamp free design. Laser light source lasts up to 20,000 hours
Dimensions (W x D x H)	530 x 748 x 248 mm
Weight	49 kg
Noise Level	43dB / 40dB (Normal / Eco)
Power	Supply: AC 100-240V, 50/60Hz Consumption: 1800W (Normal Mode), <0.5W (Standby)
Control Software	PJ - Control V3.0.0.4
Warranty	Large Venue Laser Phosphor Warranty: 5 Year projector / 5 years or 20.000h on the Laser Phosphor illumination source.(Whichever comes first)
Standard Accessories	HDMI Cable, User Manual (CD), Lens Cap, Warranty Card (by region), Remote Controller (with battery), AC Power Cord, Remote Control Cable
Optional Accessories	Remote Control P/N (5041848301)
UPC Code	DU9900Z-BK: 813097 025289
