NC-X500

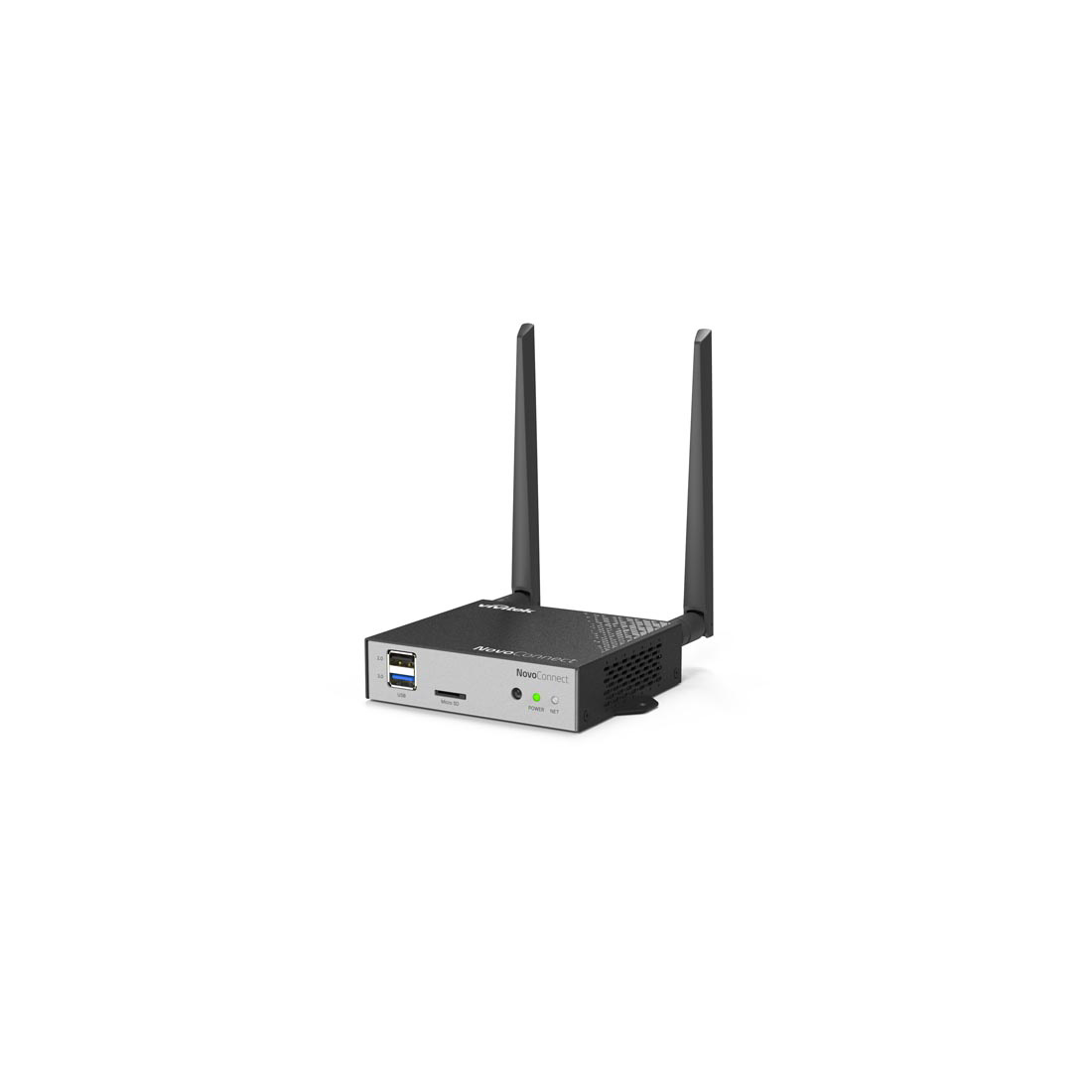

Vivitek | NovoConnect Wireless Image Transmitter
4K 60 fps
4 fragment
HDMI out
32GB memory
Windows macOS iOS Android
The NC-X500 is a cost-effective wireless collaboration solution meticulously designed for professional and educational environments. It enables seamless collaboration through its advanced 4K-to-4K mirroring capabilities ensuring exceptional clarity and vividness in every presentation. Additionally, cloud-based management system available for enhances ease of use by providing efficient monitoring and control, ensuring the NC-X500 consistently delivers optimal performance and functionality.
PRODUCT SPECIFICATION
Application |
Education / Corporate |
Wireless Collaboration Built-in |
Yes, NovoConnect |
BYOD Compatibility |
Windows 10+, MacOS 10.11+, Android 5.0+, iOS 9+, Chromebook, Screen Mirroring: AirPlay, GoogleCast, Miracast for Windows 10+ |
BYOM Compatibility |
Windows, MacOS (Optional) |
Simultaneous Connections |
64 |
Split-View |
Quad Split-View |
Screen Duplication Over the Network |
Yes |
USB Plug & Play |
Launchers |
Security |
Meeting ID, Dual network WiFi & LAN, AES-256 encryption, ISO 27001 |
Device Management |
PC Based: Remote Manager for Windows, Cloud-Based: Remote Manager Cloud |
Storage |
Internal: 16GB (eMMC Flash), External: Micro SD card slot (up to 32GB) and USB drive |
WiFi |
802.11 b/g/n/ac (2.4GHz & 5GHz) 2T2R |
Ethernet (RJ-45) |
Yes |
Bluetooth (5.0) |
Yes |
HDMI Out |
×1 (V2.0), Resolutions: 1920x1080p @ 60fps, 4K-UHD@ 60fps |
Audio Out |
×1 |
USB Port (Host) |
×3 (USB 2.0 × 1, USB 3.0 × 1, USB-C × 1) |
IR Remote Control |
×1 |
Kensington Lock |
×1 |
Operating Temperature |
0° ~ 40° C; 32° ~ 104° F (Ambient) |
Storage Temperature |
-20° C ~ 60° C; -4° ~ 140° F (Ambient) |
Power |
5V@2A |
Dimensions (WxDxH) |
96mm x 105mm x 28mm |
Weight |
316g |
Accessories |
AC-DC adaptor, USB power cable, HDMI cable, IR Remote Control, Wi-Fi antenna, Mounting Kit, Documentation Kit, LauncherPlus(WQL-400), LauncherOne (Optional) |
Warranty |
3 Years |
