NC-X900

Vivitek | NovoConnect NC-X900 - Wireless Image Transmitter

WUXGA/1080p 60 fps

4 fragment

Six-core ARM

16GB memory

Windows macOS Ubuntu iOS Android

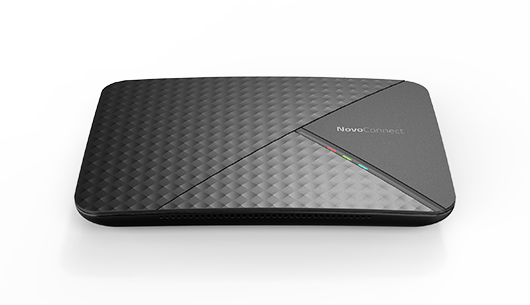

NovoConnect NC-X900 is the flagship product in the range and transforms any existing screen to enable the highest quality wireless screen mirroring and collaboration during meetings. In addition, it offers a seamless switch to Digital Signage mode in 4K resolution before or after any meeting session. Wireless connection is simple, thanks to the NovoConnect App mirroring content from any device. The NC-X900 users can benefit from its dual-WiFi capacity with a dedicated band reserved for native Windows (Miracast), Mac OS and iOS (AirPlay), and Android (Google Cast) mirroring. Guests can use the optional USB LauncherPlus for direct WiFi connectivity from any laptop.

PRODUCT SPECIFICATION

Model	NC-X900
Supported OS System	Windows 7 / 8 / 10 (32 bits and 64 bits), macOS 10.7 and above, Ubuntu 18.04 and above, iOS 11.0 and above, Android 5.0 and above
Miracast	Windows 10 Miracast
Desktop Streaming	up to WUXGA/1080p, 60 fps
Split Screen	Up to 4, in dynamic layout
Mirroring Resolution	Up to 4K-UHD, 30 fps
Output Resolution	4K-UHD (3840 x 2160), 1080p (1920 x 1080), 720p (1280 x 720)
Collaboration	Windows 10 Extended Desktop function, Moderator function, AirNote for instant annotation from meeting participants, Novo Screennote for virtual whiteboard
Productivity	Meeting ID, QR Code connection support, PIN connection function
Digital Signage Annocement Board	NovoDS Digital Signage - Message and Annocement Board, intuitive drag-and-drop interface, flexible playlist creation, dynamic content from text, audio, photos and videos to webpages, Twitter, RSS, Google Calendar, Weather, and more.
Wireless Screen Duplication	NT Live Sender and Reciever for wireless screen duplication
Security	Dual network WiFi & LAN, AES-256 encryption, Kensington lock

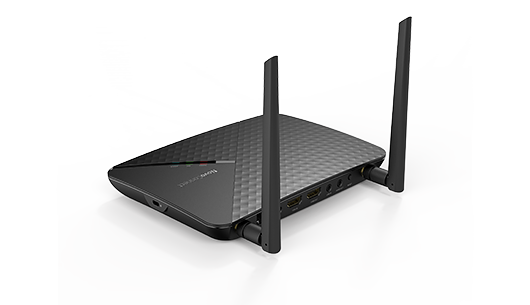

WiFi	802.11ac, b/g/n, 2.4GHz & 5GHz, 2T2R with 2 external antenna Dual WiFi modules (one dedicated for Miracast)

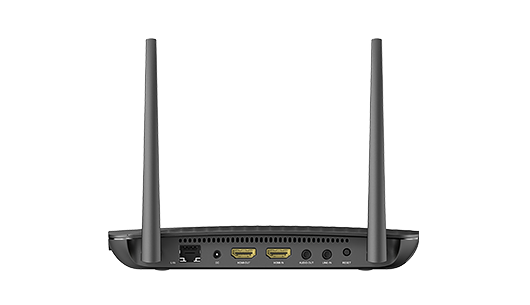

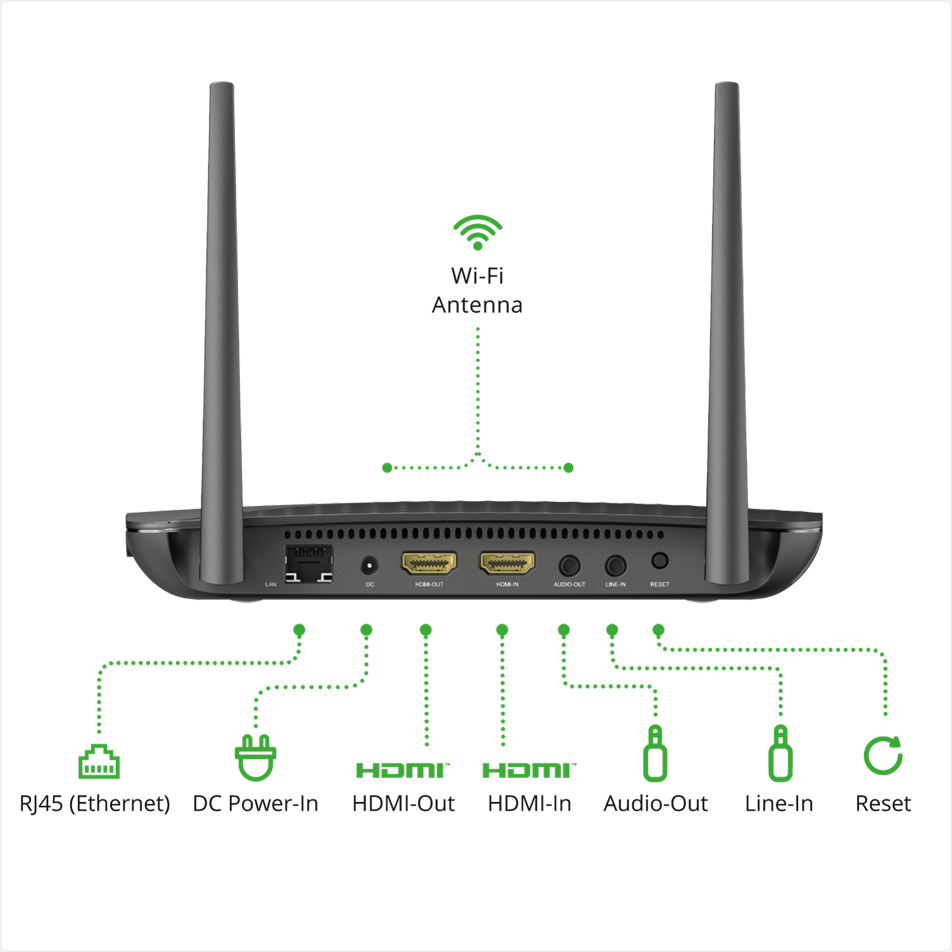

Output	HDMI-Out Audio-Out (3.5mm jack)

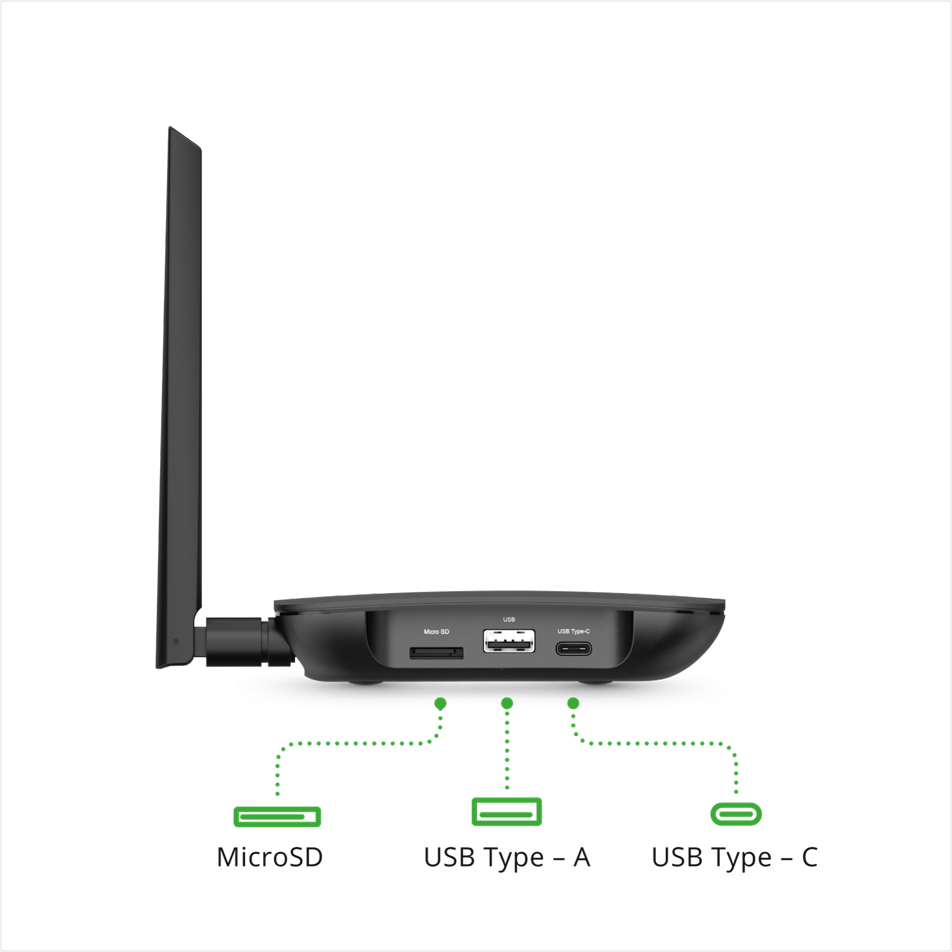

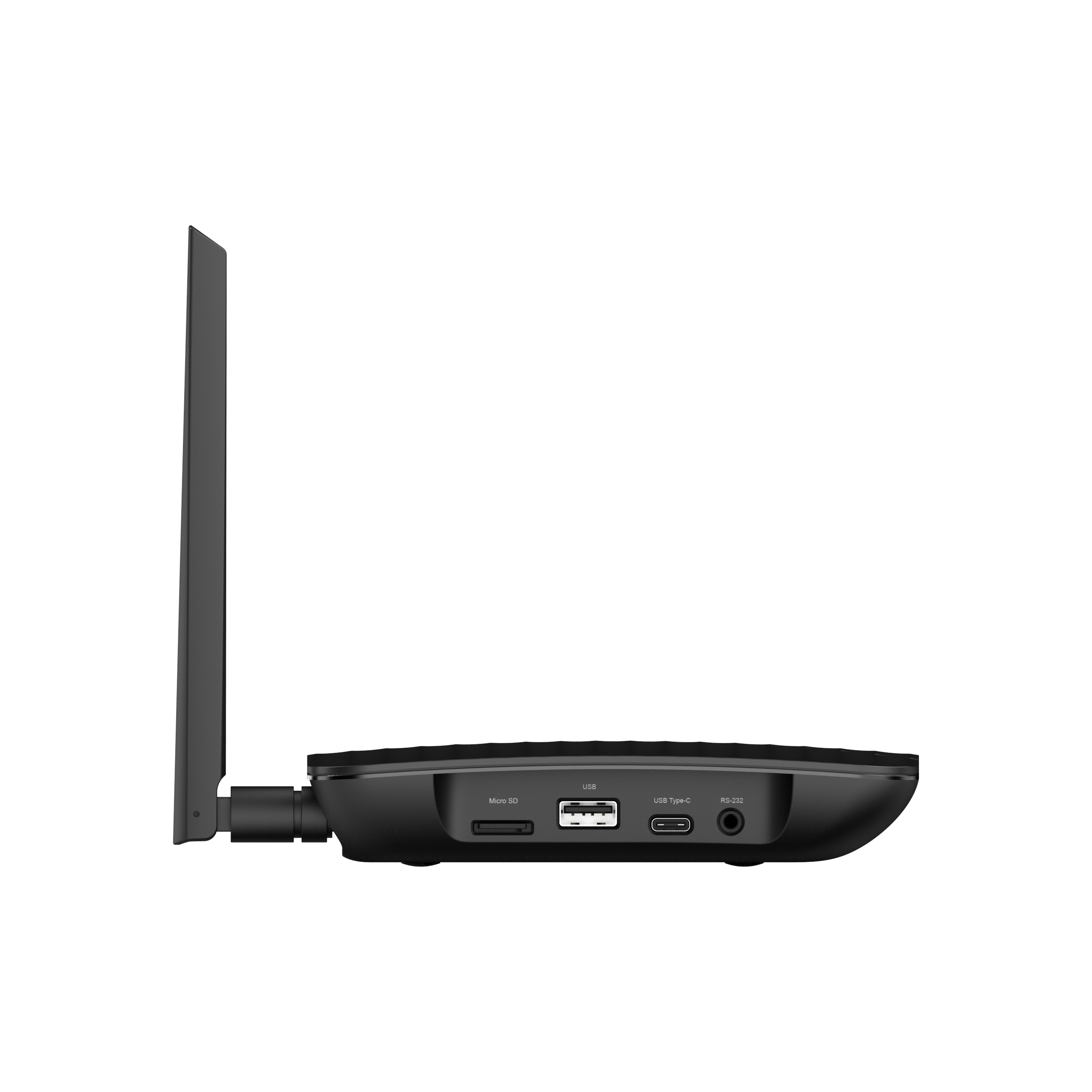

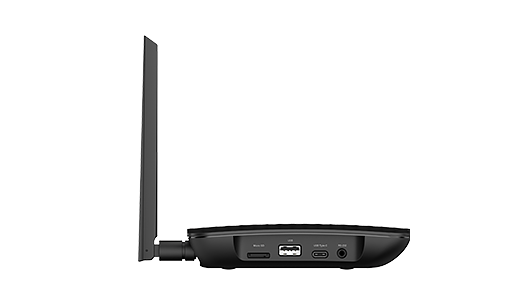

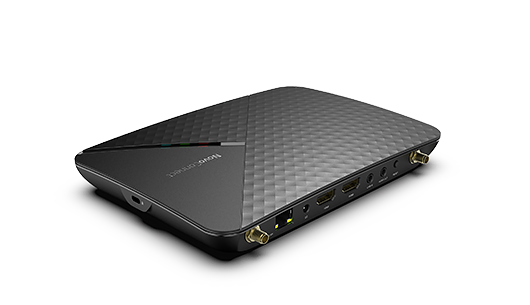

Input	Ethernet RJ45 (PoE); USB Type A x 1 USB Type C x 1; microSD Slot; HDMI-In; Line-In 3.5mm mini jack; RS-232 jack DC Jack Power-In
CPU	Six-core ARM
Storage	16GB
Product Dimensions (L x W x H)	195.8 x 139.8 x 28 mm
Weight	446 g
Package Content	Main Unit, 2x Antennae, HDMI Cable, USB Cable, Power Adapter, Remote Control with Batteries, Wall Mount KIT, Document KIT
Optional Accessories	LauncherPlus (USB Type A), LauncherPlus (USB Type C), LauncherOne (USB Type A)
Warranty	2 years
