NovoWall

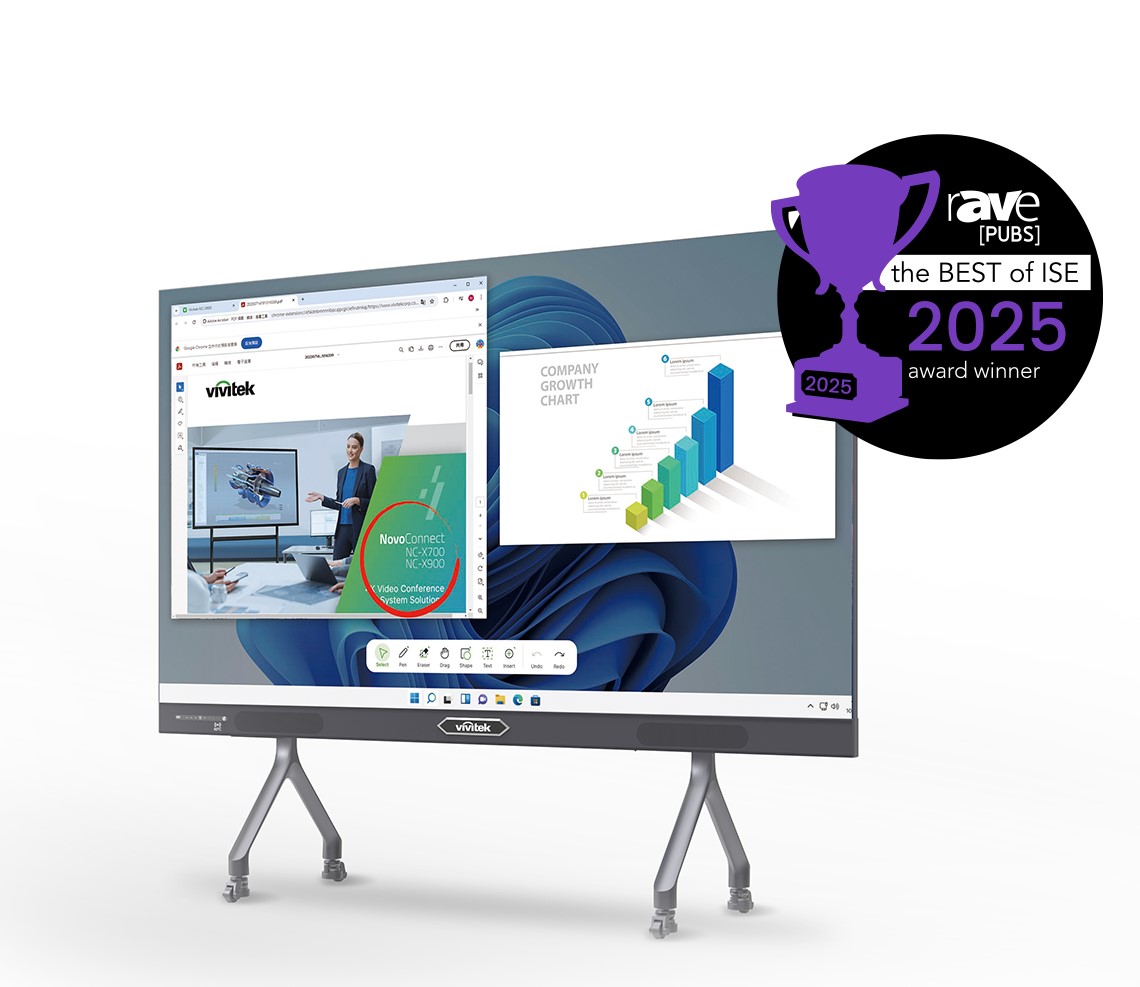

Vivitek | 135'' All-in-One LED

özellik ikonu

135 inches

özellik ikonu

1920x1080 resolution

özellik ikonu

600cd/m2 brightness

özellik ikonu

170° viewing angle

özellik ikonu

Windows 11

The NovoWall All-in-One LED display is a versatile, high-performance solution tailored for corporate and educational environments. Featuring a builtin Windows 11 operating system, it allows users to run their own applications with maximum flexibility and efficiency. It also incorporates Vivitek’s NovoConnect Stage, the award-winning Windowsbased collaboration software that enhances teamwork through wireless presenting, screen sharing, and real-time collaboration.
With multiple integrated interfaces, NovoWall ensures broad compatibility with various devices, making it ideal for video conferencing and hybrid meetings. This all-in-one solution integrates the screen, controller, audio, and power into a sleek, slim design that’s easy to install and maintain. Its fine pixel pitch, high brightness, and wide viewing angles deliver vibrant, sharp visuals in any setting.
Designed for plug-and-play simplicity, with silent fan-less operation and 24/7 reliability, NovoWall offers a m

PRODUCT SPECIFICATION

Size

135 inches

Panel Type

Flip chip COB

Pixel Pitch Exhibited

1,5 mm

Screen Resolution

1920x1080

Display Size

3000x1687.5 mm

Brightness

600 cd/m2

Refresh Rate

3840 Hz

Viewing Angle

horizontal: 170° vertical: 160°

Color Gamut Coverage (NTSC)

≥114%

Protection Level of Screen Unit

IP65 (front)

Maintenance Method

Front maintenance

Built-in System

Windows 11

Windows System Configuration

I7, 16G + 256G

Windows System Version

Windows 11

Support for Screen Transfer Terminal

Android phones, iPhones, tablets, Windows computers, Mac computers

Hardware Screen Transmitter

Support

Screen Mirroring

16-screen

Reverse Control

Support

One Click Turn off Screen

Support

PD Charging

TYPE-C Support

Built-in Speaker

2x 15W

Audio and Video Input

HDMI x 3, TYPE-C x 1, 3.5mm TRS x 1

Audio and Video Output

HDMI OUT x 1, 3.5mm TRS x 1, SPDIF x 1

USB Interface

USB3.0 x 6

Network Interface

LAN 2

WI-FI & Wireless Hotspot

WiFi x 1, AP x 1

Control Port

RS232 x 1, DEBUG x 1

Peak Power

1300 W

Average Power

650 W

Standby Power

0,5 W

Power Supply Requirements

100-240V/AC (50-60Hz)

Life Typical Value

1001000 hrs

Operating Temperature

-10~ +45 ℃

Operating Humidity (RH)

10~ 90%

Storage Temperature

-20~ +65 ℃

Storage Humidity (RH)

10~ 90%

Size (including wall mounted)

3012 x 1838 x 56.6 mm

Net Weight

150 kg

Wall Mounted Bracket

Standard

Moving Bracket

Optional
