VKW32-i5

Vivitek | VKW32-i5 - NovoTouch OPS Module

IntelÂ® i5-12450H 3.3GHz

DDR4 8GB RAM

256GB SSD

IntelÂ® IrisÂ® Xe Graphics

Windows 11 support

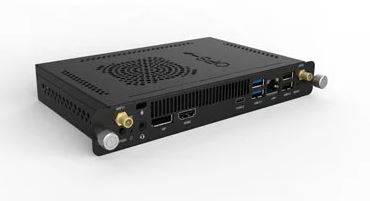

VKW32-i5 is a fully featured removable PC module for seamless integration into the NovoTouch interactive flat panel display. It provides 4K@30Hz HDMI output for connection with a second display. It is easy to install and maintain and helps reduce cable clutter in your work area by offering wireless operation.

PRODUCT SPECIFICATION

Compatible Products	EKxx3i series, EKxx5i series, BKxx2i series
Type	Detachable PC Module
Operating System	Windows11 (Not Included)
Interface	80P JAE Connector
CPU IntelÂ® Coreâ„¢	i5-12450H
Efficient-core Max Turbo Frequency	3.3GHz
RAM	DDR4-3200MHz 8GB
Storage (M2. SSD)	256GB
Graphics	IntelÂ® IrisÂ® Xe Graphics
Networking (LAN)	10/100/1000Mbps
Audio Input	Microphone-In (3.5mm)
Display Output	HDMI 1.4 (x1), DP1.4 (x1)
Audio Output	Line-out (3.5mm)
Ethernet	RJ45 (10/100/1000Mbps)
USB	USB 3.1 (x2), USB 2.0 (x2), Type C x1 (Data Only)
Wireless	IEEE 802.11 a/b/g/n/ac/ax
Bluetooth	V5.2
HDD Green LED	Hard Disk is Running
Power Red LED	Power is On
TPM	Intel CPU Integrated TPM,TPM2.0
Operating Temperature	-10Â°C - 45Â°C (14Â°F - 113Â°F)
Operating Humidity	10% - 90% RH
Storage Temperature	-20Â°C - 70Â°C (-4Â°F - 158Â°F)
Storage Humidity	5% - 95% RH
Power Supply	80Pin OPS interface power supply
Power	12V-19V
Max Power	80.7W
Standby Power	2.9W
Accessories	Antennas (x2)
Security	KensingtonÂ® Security Slot
Available Color	Black
Weight	0.6kg (4lbs)
Dimensions	180 x 119 x 30mm (7.1â€™ x4.7` x 1.2`)
