VKW32-i7
Vivitek | NovoTouch OPS Module
Intel® i5-12450H 3.5GHz
DDR4 8GB RAM
256GB SSD
Intel® Iris® Xe Graphics
Windows 11 support

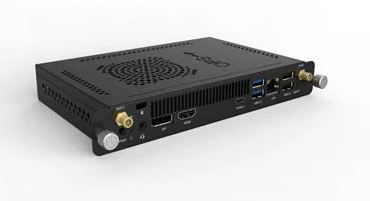

VKW32-i7 is a fully featured removable PC module for seamless integration into the NovoTouch interactive flat panel display. It provides 4K@30Hz HDMI output for connection with a second display. It is easy to install and maintain and helps reduce cable clutter in your work area by offering wireless operation.
PRODUCT SPECIFICATION
Compatible Products |
EKxx3i series, EKxx5i series, BKxx2i series |
Type |
Detachable PC Module |
Operating System |
Windows11 (Not Included) |
Interface |
80P JAE Connector |
CPU Intel® Core™ |
i7-12650H |
Efficient-core Max Turbo Frequency |
3.5GHz |
RAM |
DDR4-3200MHz 8GB |
Storage (M2. SSD) |
256GB |
Graphics |
Intel® Iris® Xe Graphics |
Networking (LAN) |
10/100/1000Mbps |
Audio Input |
Microphone-In (3.5mm) |
Display Output |
HDMI 1.4 (x1), DP1.4 (x1) |
Audio Output |
Line-out (3.5mm) |
Ethernet |
RJ45 (10/100/1000Mbps) |
USB |
USB 3.1 (x2), USB 2.0 (x2), Type C x1 (Data Only) |
Wireless |
IEEE 802.11 a/b/g/n/ac/ax |
Bluetooth |
V5.2 |
HDD Green LED |
Hard Disk is Running |
Power Red LED |
Power is On |
TPM |
Intel CPU Integrated TPM,TPM2.0 |
Operating Temperature |
-10°C - 45°C (14°F - 113°F) |
Operating Humidity |
10% - 90% RH |
Storage Temperature |
-20°C - 70°C (-4°F - 158°F) |
Storage Humidity |
5% - 95% RH |
Power Supply |
80Pin OPS interface power supply |
Power |
12V-19V |
Max Power |
80.7W |
Standby Power |
2.9W |
Accessories |
Antennas (x2) |
Security |
Kensington® Security Slot |
Available Color |
Black |
Weight |
0.6kg (4lbs) |
Dimensions |
180 x 119 x 30mm (7.1’ x4.7` x 1.2`) |
