VKW30-i7

Vivitek | VKW30-i5 - NovoTouch OPS Module

IntelÂ® i7-8565U 1.8GHz

DDR4 8GB RAM

256GB SSD

IntelÂ® UHD Graphics 620

Windows 10 support

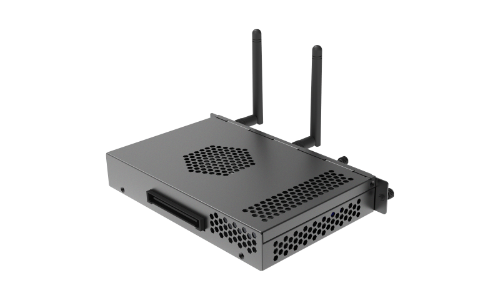

VKW30-i5 is a fully featured removable PC module for seamless integration into the NovoTouch interactive flat panel display. It provides 4K@30Hz HDMI output for connection with a second display. It is easy to install and maintain and helps reduce cable clutter in your work area by offering wireless operation.

PRODUCT SPECIFICATION

Product Compatibility	EK653i, EK753i, EK863i
Type	Detachable PC Module
Operating System	Windows 10 Recommend (Not Included)
Interface	80PIN Connector
CPU (IntelÂ® 8 Generation CPU)	IntelÂ® Coreâ„¢ i7-8565U 1.8GHz
RAM	DDR4 8GB
Storage (M2. SSD)	256GB
Graphics (Integrated)	IntelÂ® UHD Graphics 620
Sound Card	Integrated High Definition Audio Stereo
Networking	Integrated 10/100/1000Mbps Adaption
Audio Input	Microphone-In (3.5mm)
Display Output	HDMI-Out v1.4 (4K@30Hz)
Audio Output	Audio-Out (3.5mm)
Ethernet	RJ45
USB	USB 2.0 (x2), USB 3.0 (x2), USB 3.1 Type C (Gen 2)(Data Only)
Wireless	802.11ac (2.4GHz/5GHz)
Bluetooth	V4.2
LED Indicator	HDD LED, Power LED
Buttons	Power Button, System Recovery Button
Operating Temperature	0Â°C - 45Â°C (32Â°F - 113Â°F)
Operating Humidity	10% - 90% RH
Storage Temperature	-20Â°C - 60Â°C (-4Â°F - 140Â°F)
Storage Humidity	10% - 90% RH
Power Supply	Internal Power Supply Module
Power Requirement	12 - 19V, DC 5.0A
Max Power	60W
Standby Power	1.2W
Accessories	Antennas (x2), Documentation Kit
Security	KensingtonÂ® Security Slot, TPM2.0
Available Color	Black
Weight	0.74kg (1.6lbs)
Dimensions (L x W x H)	202 x 133.5 x 30mm (7.9 x 5.3` x 1.2`)
